ADM238LJNZ
| Manufacturer | |
| Description | Quad Transmitter/Receiver RS-232 24-Pin PDIP Tube IC TX/RX QUAD RS-232 5VLP 24DIP ADM238LJNZ, Multichannel Line Transceiver, EIA-232-E, RS-232, V.28 4-TX 4-RX 4-TRX, 5V, 24-Pin PDIP RS-232 Interface IC Low Pwr +5V CMOS 100kBPS Transceiver TRANSCEIVER QUAD RS232, DIP24, 238 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 15 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ESD Protection | No |
Electrical
| Data Rate | 120 Kbps | Interface | EIA-232-E|RS-232|V.28 |
| Input Signal | Single-Ended | Signal Types | Single-Ended |
| Power - Input | Single | Data Rate (Max) | Point-to-Point |
| Current - Output | 13 mA | Driver Circuitry | :RS-232 |
| Voltage - Supply | 5 V | Power Supply Type | Single |
| Receiver Hysteresis | 650mV | Voltage - Supply Span (Typ) | Not Required V |
| Number of Receivers per Line | 1 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 31.75mm | Weight | 0.003333 |
| Packaging | Tube | Case Color | :DIP |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :24 | Package / Case | 24PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Package Quantity | PDIP | Size / Dimension | 31.75 x 6.35 x 3.3mm |
| Number of Positions | 24 | Supplier Device Package | 24-PDIP |
Product Info
| Type | Transceiver | Duplex | Full |
| Series | ADM238L | DELETED | Compliant |
| Function | Line Transmitter/Receiver | Protocol | RS232 |
| Shutdown | No | Communications | RS-232 |
| Number of Drivers | 4 | Number of Receivers | 4 |
| Number of Transmitters | 4 | Number of Drivers/Receivers | 4/4 |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

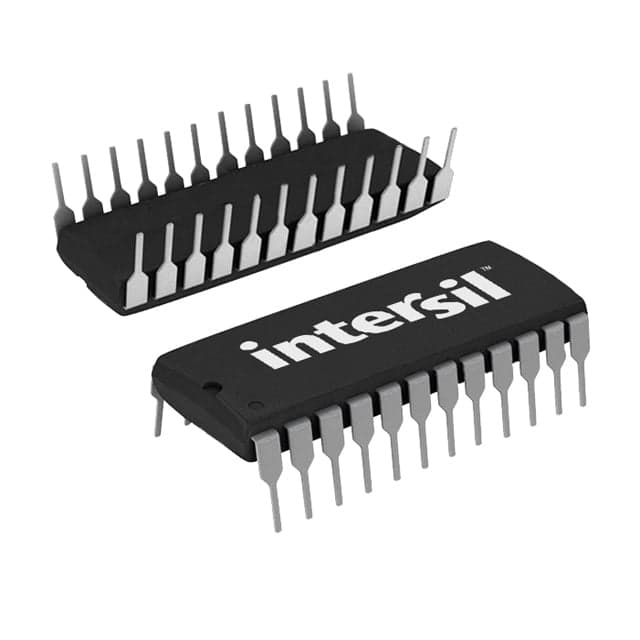

HIN238CPZ
