ADM211EARZ
| Manufacturer | |
| Description | Quad Transmitter Quint Receiver RS-232 28-Pin SOIC W Tube IC TXRX RS232 5V 0.1UF 28SOIC ADM211EARZ, Line Transceiver, EIA-232-E, RS-232, V.28 4-TX 5-RX 4-TRX, 5V, 28-Pin SOIC W RS-232 Interface IC 15kV Protct 230kBPS Transceiver IC IC, TRANSCEIVER, SMD, SOIC28, 211 Driver; line-RS232; RS232; Outputs:4; SO28 Analog Devices 230kbps 线路收发器, RS-232接口, 4-TX 5-RX, 5 V, 28针 SOIC W封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 27 |
| Standard Package Name | SOIC W | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :211 | Rad Hardened | No |
Electrical
| Data Rate | 230(Min) Kbps | Interface | EIA-232-E|RS-232|V.28 |
| Drive Type | 3-State | Input Signal | Single-Ended |
| Signal Types | Single-Ended | Power - Input | Single |
| Data Rate (Max) | Point-to-Point | Current - Output | 13 mA |
| Current - Supply | 3.5mA | Driver Circuitry | :CMOS RS232 |
| Voltage - Supply | 5 V | Number of Outputs | 4 |
| Power Supply Type | Single | Receiver Hysteresis | 650mV |
| Voltage - Supply Span (Typ) | Not Required V | Number of Receivers per Line | 1 |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 7.6mm | Height | 2.35mm |
| Length | 18.1mm | Weight | 0.000001 |
| Packaging | Tube | Case Color | :SOIC |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :28 | Package / Case | 28SOIC W |
| Package Cooled | SOIC W | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SOIC W | Size / Dimension | 18.1 x 7.6 x 2.35mm |
| Number of Positions | 28 | Supplier Device Package | 28-SOIC W |
Product Info
| Spg | 3 | Type | Transceiver |
| Duplex | Full | Series | ADM211E |
| DELETED | Compliant | Function | Line Transmitter/Receiver |
| Protocol | RS232 | Shutdown | Yes |
| Base Unit | :211 | Communications | RS-232 |
| Number of Units | 1 | Number of Drivers | 4 |
| Utilized IC / Part | line - RS232 | Number of Receivers | 5 |
| Number of Transmitters | 4 | Number of Drivers/Receivers | 4/5 |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Temperature Range | :Commercial | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
RE932-08
Roth Elektronik

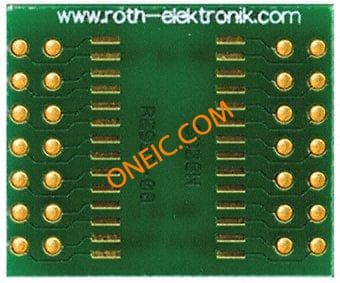

RE932-08, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 25.5 x 21 x 1.5mm FR4 ADAPTOR, SMD, SO-28W, 1.27MM Board: universal; multiadapter; W:21mm; L:25.5mm; SO28W Laboratory card FR4 Epoxide + chem. Ni/Au SO28w Adapter, RE932-08, Roth Elektronik
