ADM1177-2ARMZ-R7
| Manufacturer | |
| Description | ON PIN + LATCHED OFF I.C. Hot Swap Controller 1-CH 16.5V 10-Pin MSOP T/R IC CTRLR HOTSWAP 16.5V 10-MSOP Hot Swap Voltage Controllers ON Pin + Latched Off I.C. |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Controllers & Switches | Other Names | ADM1177-2ARMZ-R7TR |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Fault Protection | Latched Off | ||
Electrical
| External FET | N-Channel | Voltage Rating | 3.15 |
| Current - Output | 1.7mA | Current - Supply | 1.7 mA |
| Voltage - Supply | 3.15 V ~ 16.5 V | Number of Channels | 1 |
| Current Rating (Max) | 1.7mA | Voltage - Supply (Min) | 16.5 |
| External Sense Resistor | Yes | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 3 | Height | 0.85 mm |
| Length | 3 mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Length - Overall | 3 | Package Quantity | MSOP |
| Number of Contacts | ON, SS, TIMER | Number of Positions | 10 |
| Shell Size - Insert | 0.85 | Supplier Device Package | 10-MSOP |
Product Info
| Type | Positive Low Voltage | Series | ADM1177 |
| Features | I2C, Latched Fault, UVLO | Applications | General Purpose |
| Main Purpose | I2C, Latched Fault, UVLO | Manufacturer | Analog Devices |

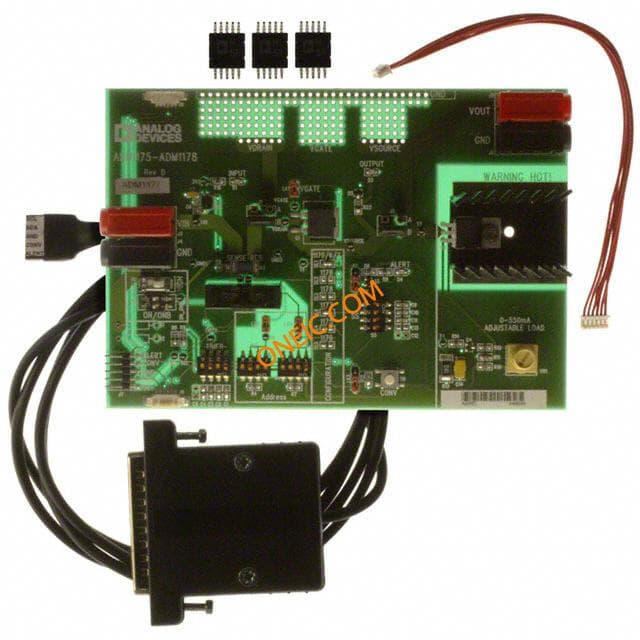

| Development Kit | EVAL-ADM1177EBZ | Internal Switch(s) | No |
| Internal Connection | No | DigiKey Programmable | Current Limit, Fault Timeout, Turn On Voltage |
| Printed Circuit Board | 10 | Programmable Features | Current Limit, Fault Timeout, Turn On Voltage |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
