ADG901BRMZ
| Manufacturer | |
| Description | RF Switch SPST 0MHz to 2.5GHz 31dB 8-Pin MSOP IC SWITCH SPST 1.65-2.75V 8MSOP ADG901BRMZ, RF Switch 2500MHz Single SPST 31dB Isolation CMOS/LVTTL 1.8, 2.5V 8-Pin MSOP RF Switch ICs SGL WB 43dB Iso 1GHz CMOS 1.65-2.75V IC, SWITCH, 4.5GHZ, SMD, MSOP8, 901 Analog Devices 2.5GHz SPDT 射频开关 , 单单刀单掷, 31dB隔离, CMOS / LVTTL技术, 1.65 → 2.75 V, 8针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| IIP3 | 36dBm (typ) | P1dB | 17dBm (typ) P1dB |
| Circuit | SPST | Frequency | 2500 MHz |
| Impedance | 50 Ohm | Isolation | 40dB @ 1GHz (typ) |
| Number of I/O | :2 | Insertion Loss | 1.25 dB |
| Voltage Rating | 1.65 V | Frequency - Max | 2500 MHz |
| Frequency - Min | 2500MHz | Current - Output | :0.1µA |
| Voltage - Supply | 1.65 to 2.75 V | Number of Channels | :1 |
| Voltage - Isolation | 31 dB | Frequency - Output 2 | DC |
| Insertion Loss (Max) | 1.25 dB | Switch Function/Rating | Single SPST |
| Voltage - Supply (Min) | 2.75 V | Power Dissipation (Max) | 2.5 uW |
| Frequency Bands (Low / High) | 0 to 2500 MHz | Switch Time (Ton, Toff) (Max) | 3.6 ns |
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Weight | 0.0001 |
| Bandwidth | :4.5GHz | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8MSOP |
| Package Cooled | MSOP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | MSOP | Size / Dimension | 3 x 3 x 0.85mm |
| Number of Positions | 8 | Supplier Device Package | 8-MSOP |
Product Info
| Series | ADG901 | RF Type | General Purpose |
| Features | :- | Topology | Absorptive |
| Base Unit | :901 | Technology | CMOS/LVTTL |
| Switch Type | SPST | Communications | :Wideband Switch |
| Number of Switches | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

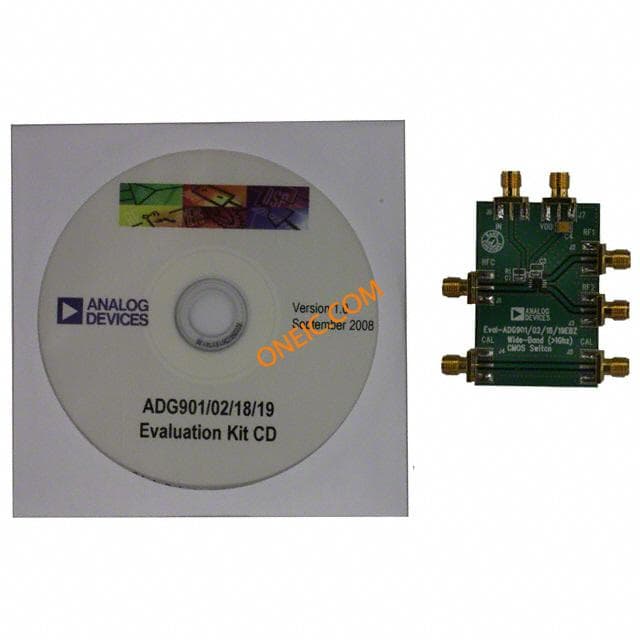

EVAL-ADG901EBZ
