ADG704BRMZ
| Manufacturer | |
| Description | Analog Multiplexer Single 4:1 10-Pin MSOP Tube IC MULTIPLEXER 4X1 10MSOP ADG704BRMZ, Multiplexer Single 4:1, 3, 5V, 10-Pin, MSOP Multiplexer Switch ICs 4:1 4 Ohm 200MHz CMOS IC, MUX 4CH SP, SMD, MSOP10, 704 Multiplexer IC SOIC-10, ADG704BRMZ, Analog Devices Analog Devices 多路复用器, 单 4:1, 3 V 5 V电源电压, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | MSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85235290 |
| Part Status | :704 | Rad Hardened | No |
Electrical
| Circuit | 1 x 4:1 | Crosstalk | 82 dB |
| Input Signal | Yes | Turn On Time | 16(Typ)@3V ns |
| Output Signal | Single Ended | Power - Input | Single |
| Power - Rated | 0.315 W | Current - Output | 1nA |
| Current - Supply | 1 uA | Delay Time - OFF | 8(Typ)@3V ns |
| Number of Inputs | 4 | Voltage - Supply | 1.8 V |
| Number of Outputs | 1 | Power Supply Type | Single |
| Number of Channels | 1 | Voltage - Off State | 80 dB |
| Resistance - RDS(On) | :35ohm | Voltage - Input (Min) | :1.8V |
| Voltage Supply Source | Single Supply | Power Dissipation (Max) | 315 mW |
| On-State Resistance (Max) | 8@3V Ohm | Voltage - Supply Span (Typ) | Not Required V |
| Switch Time (Ton, Toff) (Max) | 6 ns | Multiplexer/Demultiplexer Circuit | 4:1 |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Weight | 0.0001 |
| Bandwidth | 200 MHz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :10 |
| Package / Case | 10MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | MSOP |
| Size / Dimension | 3 x 3 x 0.85mm | Number of Positions | 10 |
| Supplier Device Package | 10-MSOP | ||
Product Info
| Type | Analog Multiplexer | Series | ADG704 |
| DELETED | Compliant | Function | Multiplexer |
| Base Unit | :704 | Switch Type | Analogue Multiplexer |
| Configuration | Single 4:1 | Number of Circuits | :1 |
| Number of Switches | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

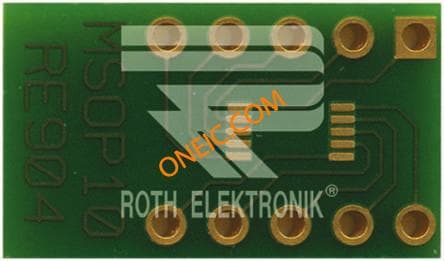

RE904
