ADF7020BCPZ-RL
| Manufacturer | |
| Description | RF Transceiver ASK/FSK 2.5V/3.3V 48-Pin LFCSP EP T/R IC TX FSK/ASK ISM BAND 48LFCSP ISM Transceiver 433/868/915MHz LFCSP48 RF Transceiver ISM Band IC Analog Devices , 双频 ASK，FSK 射频收发器, 862 → 956MHz, 2.3 → 3.6 V, 48针 LFSCP VQ封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADF7020BCPZ-RLCT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | Standard Package Name | LFCSP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 431MHz ~ 478MHz and 862MHz ~ 956MHz | Modulation | ASK/FSK |
| Sensitivity | -119dBm | Output Power | - 16 dBm to + 13 dBm |
| Data Interface | PCB, Surface Mount | Power - Output | -16dBm ~ 13dBm |
| Voltage Rating | 2.3V | Data Rate (Max) | 200kbps |
| Frequency - Max | 956MHz | Frequency - Min | 862MHz |
| Frequency Range | 862 MHz to 956 MHz | Current - Supply | 19 mA |
| Voltage - Supply | 2.3 V ~ 3.6 V | Current - Output 1 | 26.8mA @ 10dBm |
| Current - Receiving | 19mA | Frequency - Operating | 956MHz |
| Current - Transmitting | 26.8mA @ 10dBm | Voltage - Supply (Min) | 3.6V |
| Current - Supply (Main IC) | 19.1 mA | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 7mm | Height | 1mm |
| Length | 7mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Connector Type | PCB, Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 48 | Package / Case | 48-VFQFN Exposed Pad, CSP |
| Package Cooled | LFSCP VQ | Package Quantity | LFCSP EP |
| Size / Dimension | 7 x 7 x 1mm | Antenna Connector | PCB, Surface Mount |
| Number of Positions | 48 | ||
Product Info
| Type | ISM | Series | ADF7020 |
| Function | Y | Applications | Data Transfer, RKE, Remote Control/Security Systems |
| Manufacturer | Analog Devices | Number of Bands | 2 |
| Modulation or Protocol | ASK, FSK, OOK | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

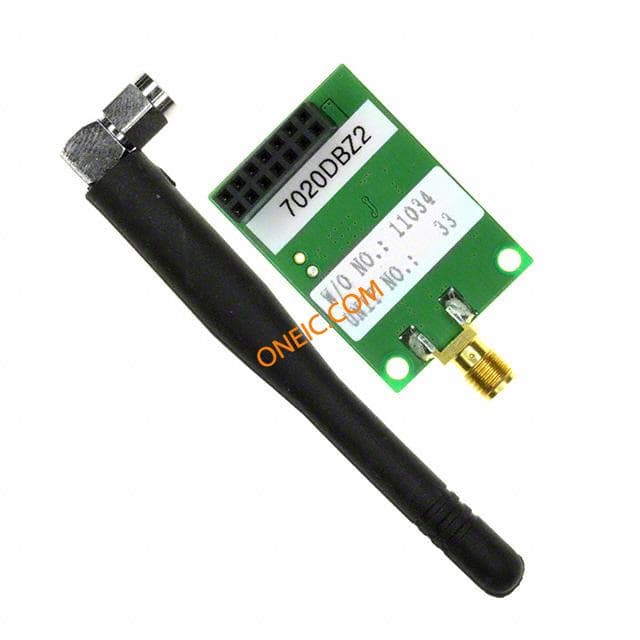

EVAL-ADF7020DBZ2
analog devices
Evaluation Kit For 860 MHz To 870 MHz Daughter Board BOARD EVAL ADF7020 862-870MHZ Daughter Cards & OEM Boards EVAL-ADF7020DBZ2 RF ISM MODULE FOR 860-870 MHZ BAND
$605.4842
Details

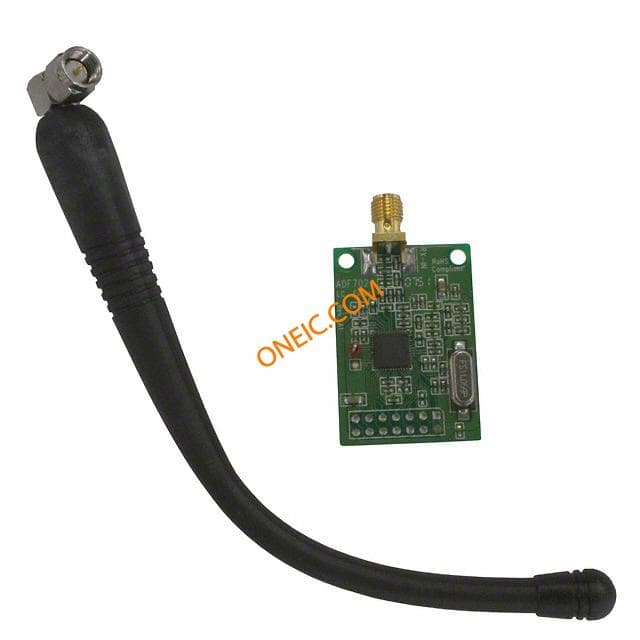

EVAL-ADF7020DBZ3
analog devices
Evaluation Kit For 430 MHz To 445 MHz Daughter Board BOARD EVAL ADF7020 433-445MHZ Daughter Cards & OEM Boards EVAL-ADF7020DBZ3 RF ISM MODULE FOR 430-445 MHZ BAND Analog Devices 收发器 评估子板
$672.3228
Details

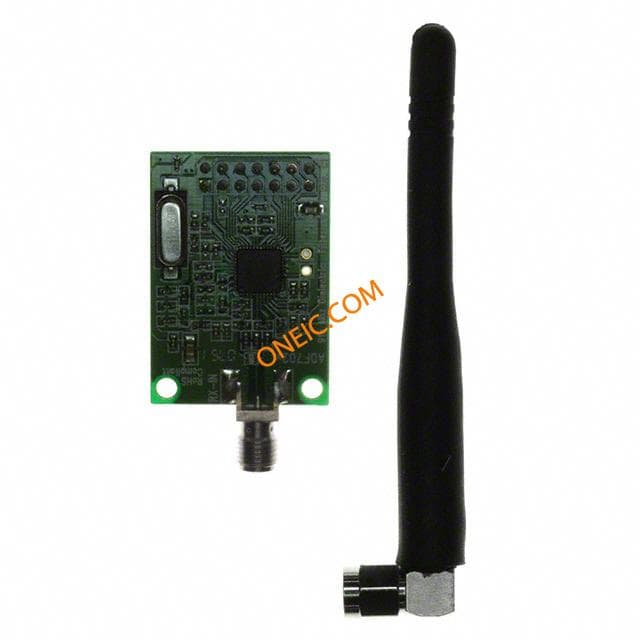

EVAL-ADF7020DBZ1
