ADF4153BRU
| Manufacturer | |
| Description | PLL Frequency Synthesizer Single 16-Pin TSSOP CLOCK SYNTHESIZER IC SYNTH PLL RF F-N FREQ 16TSSOP Phase Locked Loops - PLL Fractional-N Freq Synthesizer |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 96 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS non-compliant | EU RoHS | Not Compliant |
Electrical
| PLL | Yes | Input | CMOS, TTL |
| Output | Clock | Frequency - Max | 4000 MHz |
| Current - Output | 20 mA | Current - Supply | 20 mA |
| Voltage - Supply | 3 V | Divider/Multiplier | No/Yes |
| Number of Elements | 1 | Ratio - Input:Output | 2:1 |
| Minimum Input Frequency | 10 MHz | Differential - Input:Output | Yes/No |
Mechanical
| Width | 4.4 | Height | 1.05 mm (Max) |
| Length | 5 mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16TSSOP |
| Length - Overall | 5 | Package Quantity | TSSOP |
| Number of Positions | 16 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 16-TSSOP | ||
Product Info
| Type | PLL Frequency Synthesizer | Series | ADF4153 |

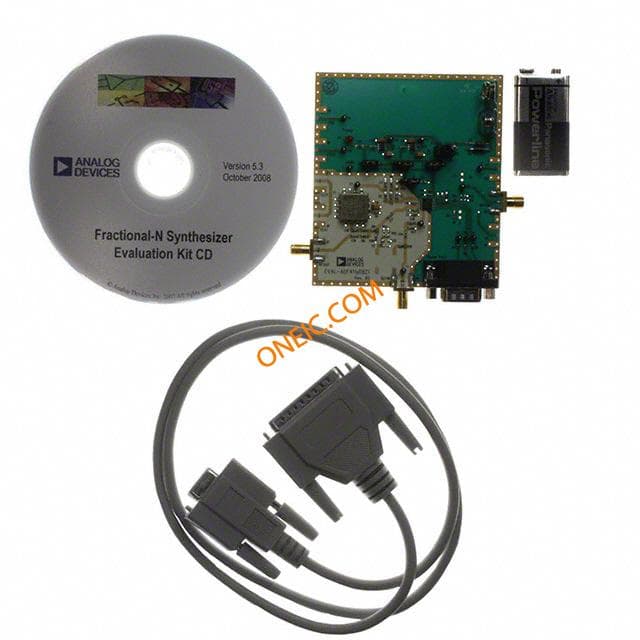

| Manufacturer | Analog Devices | Development Kit | EV-ADF4153SD1Z |
| Number of Circuits | 1 | RF Family/Standard | ADF4153 |
| Printed Circuit Board | 16 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
