ADF4113HVBRUZ-RL
| Manufacturer | |
| Description | PLL Frequency Synthesizer Single Up to 200MHz 16-Pin TSSOP T/R HIGH VOLTAGE CHARGE PUMP, PLL SYNTHESIZER IC CHARGE PUMP HV SYNTH 16-TSSOP Phase Locked Loops - PLL High VTG Charge Pump |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADF4113HVBRUZ-RLCT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| PLL | Yes | Input | CMOS, TTL |
| Output | Clock | Frequency - Max | 4000 MHz |
| Frequency Range | Up to 200 | Current - Output | 11 mA |
| Current - Supply | 11 mA | Voltage - Supply | 3|5 V |
| Divider/Multiplier | Yes/No | Number of Elements | 1 |
| Ratio - Input:Output | 2:1 | Minimum Input Frequency | 5 MHz |
| Differential - Input:Output | Yes/No | ||
Mechanical
| Width | 4.4 | Height | 1.05 mm (Max) |
| Length | 5 mm | Packaging | Tape & Reel (TR) |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16TSSOP |
| Length - Overall | 5 | Package Quantity | TSSOP |
| Number of Positions | 16 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 16-TSSOP | ||
Product Info
| Type | PLL Frequency Synthesizer | Series | ADF4113HV |
| Manufacturer | Analog Devices | Development Kit | EV-ADF4113HVSD1Z |
| Number of Circuits | 1 | RF Family/Standard | ADF4113 |
| Printed Circuit Board | 16 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
EVAL-ADF4113HVEB1Z
analog devices
Evaluation Board For ADF4113Hv BOARD EVALUATION FOR ADF4113HV
$1109.6920
Details
EVAL-ADF4113EBZ2
analog devices
Evaluation Board For ADF4113 1750MHz BOARD EVAL FOR ADF4113 1750MHZ Clock & Timer Development Tools ADF4113 EVAL BRD
$1109.6920
Details

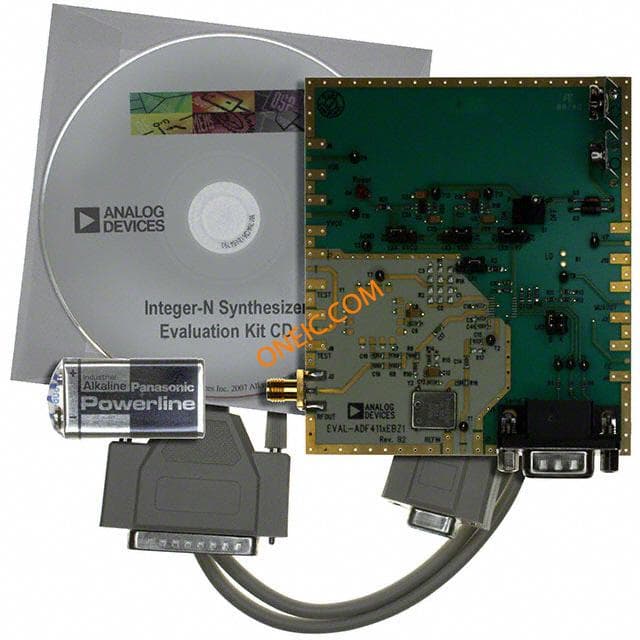

EVAL-ADF411XEBZ1
