ADCLK907BCPZ-WP
| Manufacturer | |
| Description | Clock Buffer 4-OUT 16-Pin LFCSP EP IC CLK BUFFER 1:1 7.5GHZ 16LFCSP Clock Buffer Ultrafast SiGe ECL |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | DIE | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Input | Clock | Output | ECL, NECL, PECL |
| Current Ratio | 1:1 | Voltage Rating | -2.375|2.375 V |
| Frequency - Max | 7.5GHz | Voltage - Supply | -2.5|-3.3|2.5|3.3 V |
| Number of Outputs | 4 | Frequency - Output 1 | 6000 MHz |
| Ratio - Input:Output | 1:1 | Voltage - Supply (Min) | -3.63|3.63 V |
| Propagation Delay (Max) | 0.095 ns (Typ) at 3.3 V | Differential - Input:Output | Yes/Yes |
| Max Propagation Delay @ V, Max CL | 0.095(Typ)@3.3V ns | ||
Mechanical
| Height | 0.83 mm | Length | 3 mm |
| Packaging | Tray - Waffle | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16LFCSP EP |
| Supplier Device Package | 16-LFCSP-VQ (3x3) | ||
Product Info
| Type | Buffer/Driver, Data | Series | ADCLK907 |

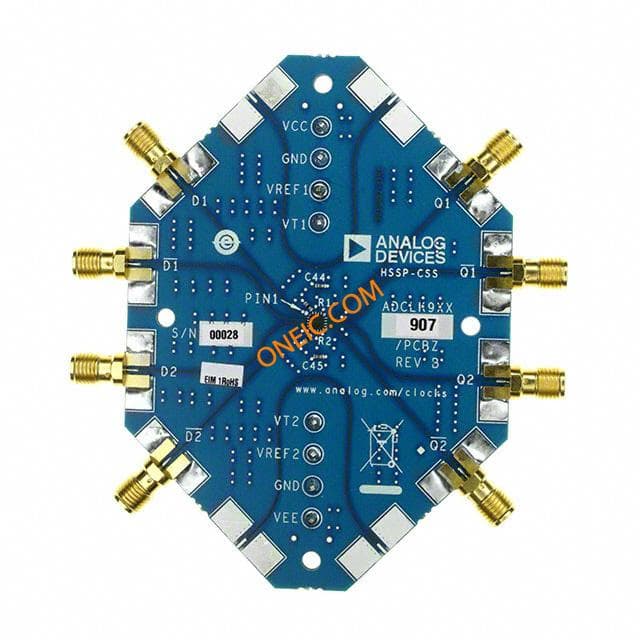

| Manufacturer | Analog Devices | Development Kit | ADCLK907/PCBZ |
| Number of Circuits | 2 | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
