AD9516-3BCPZ
| Manufacturer | |
| Description | Clock Generator 64-Pin LFCSP EP Tray IC CLOCK PLL/VCO 2GHZ 64LFCSP AD9516-3BCPZ, PLL Clock Synthesizer, 64-Pin CP 64 4 Clock Generators & Support Products 14-Output w/ Intg 2.0GHz VCO |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AD95163BCPZ | Standard Package | Trays |
| Factory Pack Quantity | 260 | Standard Package Name | LFCSP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| PLL | Yes | Input | Clock |
| Output | CMOS, LVDS, LVPECL | Output Type | LVPECL |
| Frequency - Max | 2.95GHz | Voltage - Supply | 3.135 V ~ 3.465 V |
| Number of Outputs | 14 | Divider/Multiplier | Yes/No |
| Frequency - Output 1 | 2250 MHz | Ratio - Input:Output | 1:14 |
| Differential - Input:Output | Yes/Yes | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 9mm | Height | 0.83mm |
| Length | 9mm | Packaging | Tray |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 64LFCSP EP |
| Package Cooled | CP 64 4 | Package Quantity | LFCSP EP |
| Size / Dimension | 9 x 9 x 0.83mm | Number of Positions | 64 |
| Supplier Device Package | 64-LFCSP-VQ (9x9) | ||
Product Info
| Type | Clock Generator, Fanout Distribution | Series | AD9516-3 |

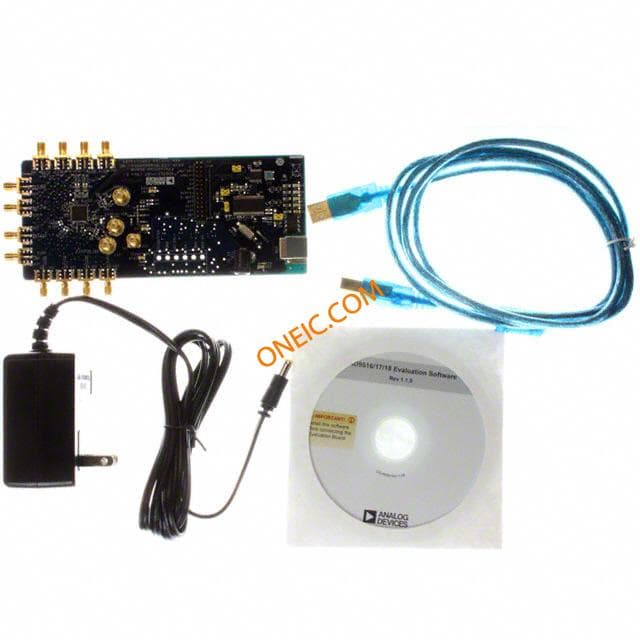

| Manufacturer | Analog Devices | Development Kit | AD9516-3/PCBZ |
| Number of Circuits | 1 | RF Family/Standard | AD9516-3 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
