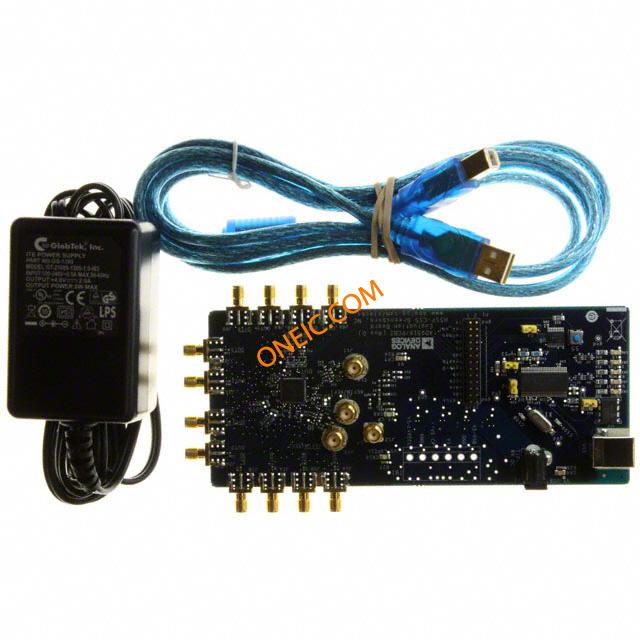

AD9516-1/PCBZ
| Manufacturer | |
| Description | Evaluation Board For 14Output Clock Generator With Integrated 2.5 GHz VCO BOARD EVALUATION FOR AD9516-1 Clock & Timer Development Tools AD9516-1 Eval Brd CLOCK IC WITH 2.5GHZ ON-CHIP VCO EB |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Evaluation Boards | Other Names | AD95161PCBZ |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84733020 |
Electrical
| Frequency | 2400 MHz, 2650 MHz | Interface | Serial |
| Voltage - Supply | 3.3 V | Number of Elements | :AD9516-0, AD9516-1, AD9516-2 |
Mechanical
| Weight | 1 | Packaging | Bulk |
Product Info
| Type | Development Kit | Series | AD9516-1 |
| Contents | Board, Cable, Power Supply | Embedded | No |
| Features | :Microsoft Windows-based Evaluation Software, On-board PLL Loop Filter | Function | Evaluation board for a multi-output clock generator |
| Kit Type | :Clock & Timing | Kit Contents | :Board |
| Main Purpose | Timing, Clock Generator | Tool Type Feature | AD9516-1 |
| Primary Attributes | 2 Inputs, 14 Outputs, 2.5GHz VCO | RF Family/Standard | AD9516-1 |
| Utilized IC / Part | AD9516-1 | Chipset Manufacturer | :Analog Devices |
| Secondary Attributes | CMOS, LVDS, LVPECL Output Logic, ADIsimCLK™ Graphical User Interface | Application Specifics | :PLL Clock Synthesizer |
| For Use With/Related Products | AD9516-1 | ||
Environmental
| Operating Temperature | - 40 C | ||
