AD8153ACPZ-RL7
| Manufacturer | |
| Description | Digital Crosspoint Single 3x3 3.2Gbps 2:1 Mux/1:2 Demux Switch 32-Pin LFCSP EP T/R IC SW MUX/DEMUX SGL BUFF 32LFCSP Analog & Digital Crosspoint ICs SGL-Lane 3.2G 2:1Mux / 1:2 Demux Switch |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital Crosspoint Switches | Other Names | AD8153ACPZ-RL7CT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1500 |
| Standard Package Name | LFCSP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | 1 x 2:1 | Data Rate | 3.2 Gbps |
| Input Type | CML | Output Type | CML |
| Output Signal | CML | Data Rate (Max) | 3.2 Gbps |
| Voltage - Supply | 3 V | Power Supply Type | Single |
| Number of Channels | No | Number of Elements | 3x3 |
| Voltage Supply Source | Single Supply | Input Logic Level - High | CML |
| Differential - Input:Output | Yes | ||
Mechanical
| Height | 0.83 mm | Length | 5 mm |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 32LFCSP EP | Package Quantity | LFCSP EP |
| Number of Positions | 32 | Supplier Device Package | 32-LFCSP-VQ (5x5) |
Product Info
| Type | Multiplexer/Demultiplexer | Series | AD8153 |
| Features | No | Class Code | NRZ |
| On-Chip RAM | Yes | Circuit Type | 1 x 2:1 |
| Manufacturer | Analog Devices | Configuration | 3 x 3 |

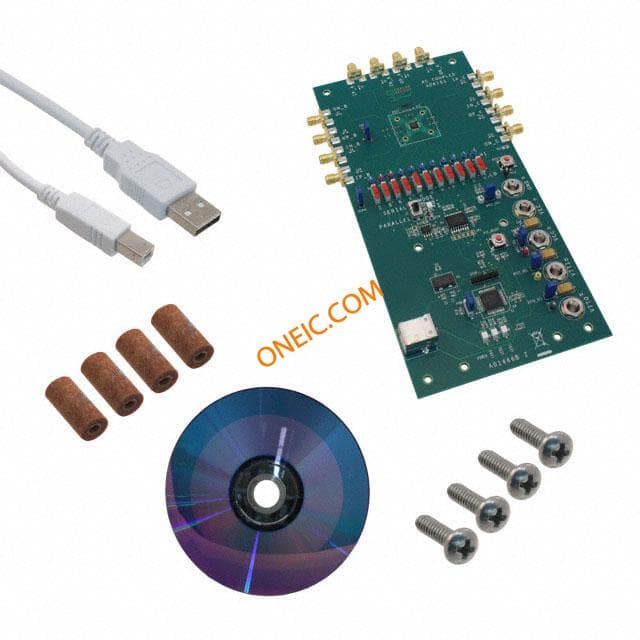

| Development Kit | AD8153-EVALZ | DigiKey Programmable | No |
| Independent Circuits | 1 | Output Configuration | Surface Mount |
| Number of A/D Converters | Yes | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
