AD7912ARMZ
| Manufacturer | |
| Description | ADC Single SAR 1Msps 10-bit Serial 8-Pin MSOP Single ADC SAR 1Msps 10-bit Serial 8-Pin MSOP IC ADC 10BIT DUAL 2CH 8MSOP AD7912ARMZ, 10-Bit Analogue to Digital Converter, SPI, Microwire, 8-Pin MSOP Analog to Digital Converters - ADC 2CH 2.35-5.25V 1 MSPS 10-Bit 10BIT ADC, DUAL 1MSPS, 7912, MSOP8 Analog Devices , 10 位 ADC, Serial (SPI/QSPI/Microwire)接口, 8针 MSOP封装 |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :7912 | ||
Electrical
| Data Rate | :1Mbps | Interface | Serial (SPI, QSPI, Microwire) |
| Linearity | :0.5LSB | Input Type | Voltage |
| Resolution | 10 Bit | Input Signal | Single-Ended |
| INL/DNL (LSB) | ±0.5LSB | Converter Type | General Purpose |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Unipolar |
| Number of Bits | 10 | Voltage Rating | 5.25V |
| Data Rate (Max) | 1 MSPs | Current - Output | :4mA |
| Voltage - Supply | 2.5 V, 3.3 V, 5 V | Resolution (Bits) | :10bit |
| Voltage Reference | Supply | Number of Channels | 2 Channel |
| Sampling Frequency | 1 Msps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Rise / Fall Time (Typ) | :1µs |
| Power Dissipation (Max) | 15 mW | Differential Nonlinearity | ±0.5LSB |
| Voltage Supply - Internal | :2.35V to 5.25V | Sampling Rate (Per Second) | 1M |
| Differential - Input:Output | No | S/N Ratio, ADCs / DACs (db) Typ | 61 dB |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Weight | 0.000045 |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3 |
| Package Quantity | MSOP | Size / Dimension | 3 x 3 x 0.85mm |
| Number of Positions | 8 | Shell Size - Insert | 0.85 |
| Supplier Device Package | 8-MSOP | ||
Product Info
| Series | AD7912 | Base Unit | :7912 |
| Architecture | SAR | Printed Circuit Board | 8 |
| Number of A/D Converters | 2 | Number of Inputs and Type | 2 Single-Ended, Unipolar |
Environmental
| Temperature Range | :Commercial | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts

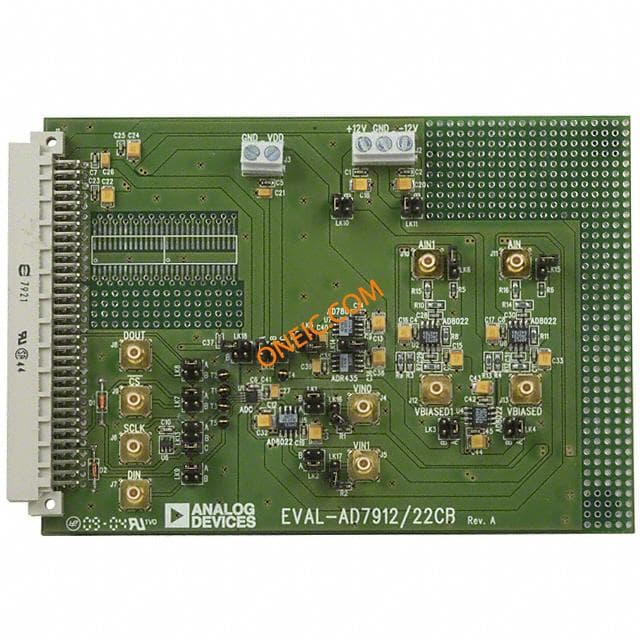

EVAL-AD7912CBZ
