AD7797BRUZ-REEL
| Manufacturer | |
| Description | ADC Single Delta-Sigma 123sps 24-bit Serial 16-Pin TSSOP T/R Single ADC Delta-Sigma 123sps 24-bit Serial 16-Pin TSSOP T/R IC ADC 24BIT SIG-DEL 1CH 16TSSOP Analog to Digital Converters - ADC Low Power 24-Bit |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | AD7797BRUZ-REELCT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Input Type | Voltage |
| Resolution | 24 Bit | Input Signal | Differential |
| INL/DNL (LSB) | ±10ppm of FSR(Typ) | Converter Type | General Purpose |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Bipolar |
| Number of Bits | 24 | Reference Type | External, Internal |
| Data Rate (Max) | 123 SPs | Ratio - S/H:ADC | No |
| Voltage - Supply | 5 V | Voltage Reference | External |
| Number of Channels | 1 Channel | Sampling Frequency | 123 sps |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Gain Bandwidth Product | +/- 10 uV | Power - Average Forward | 1.6 mW |
| Power Dissipation (Max) | 1.6 mW | Sampling Rate (Per Second) | 123 |
| Differential - Input:Output | Yes | ||
Mechanical
| Width | 4.4 | Height | 1.05 mm (Max) |
| Length | 5 mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16TSSOP |
| Length - Overall | 5 | Package Quantity | TSSOP |
| Number of Positions | 16 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 16-TSSOP | ||
Product Info
| Series | AD7797 | Architecture | Delta-Sigma |

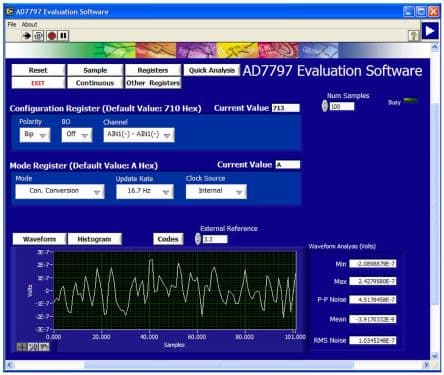

| Manufacturer | Analog Devices | Development Kit | EVAL-AD7797EBZ |
| Printed Circuit Board | 16 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 1 Differential, Unipolar; 1 Differential, Bipolar | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
