AD7734BRU
| Manufacturer | |
| Description | ADC Single Delta-Sigma 3.05Msps 24-bit Serial 28-Pin TSSOP Single ADC Delta-Sigma 3.05Msps 24-bit Serial 28-Pin TSSOP IC ADC 24BIT 4-CH 28-TSSOP Analog to Digital Converters - ADC 4Ch+/-10V InputRange 24-Bit |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | TSSOP |
Compliance
| RoHS | RoHS non-compliant | EU RoHS | Not Compliant |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | Input Type | Voltage |
| Resolution | 24 Bit | Input Signal | Single-Ended |
| INL/DNL (LSB) | ±0.006%FSR | Converter Type | General Purpose |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Unipolar|Bipolar |
| Number of Bits | 24 | Reference Type | External |
| Voltage Rating | 5V/10V|±5V/±10V | Data Rate (Max) | 15.4 kSPs |
| Ratio - S/H:ADC | No | Voltage - Supply | 5 V |
| Voltage Reference | External | Number of Channels | 4 Channel |
| Sampling Frequency | 3.05 Msps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Analog and Digital | Gain Bandwidth Product | +/- 0.5 %FSR |
| Power - Average Forward | 85 mW | Power Dissipation (Max) | 100 mW |
| Sampling Rate (Per Second) | 15.4k | Differential - Input:Output | No |
| Common Mode Transient Immunity (Min) | Extended Industrial | ||
Mechanical
| Width | 4.4 | Height | 1.05 mm (Max) |
| Length | 9.7 mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 28TSSOP |
| Length - Overall | 9.7 | Package Quantity | TSSOP |
| Number of Positions | 28 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 28-TSSOP | ||
Product Info
| Series | AD7734 | Architecture | Delta-Sigma |

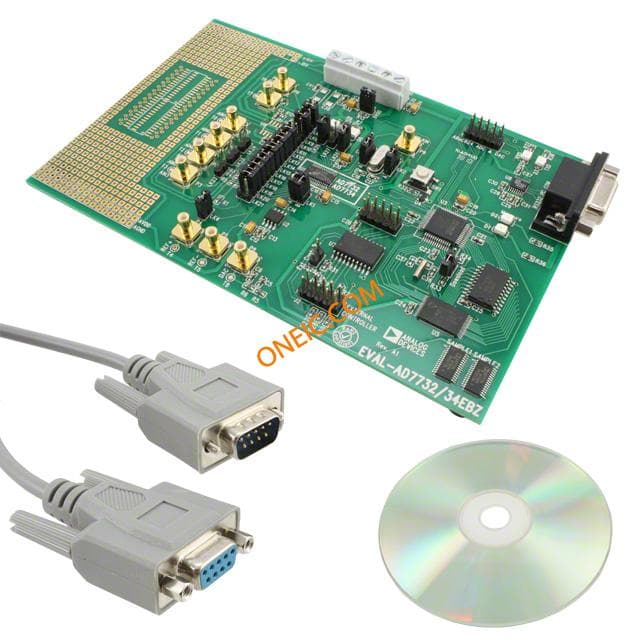

| Manufacturer | Analog Devices | Development Kit | EVAL-AD7734EBZ |
| Printed Circuit Board | 28 | Number of A/D Converters | 4 |
| Number of Inputs and Type | 4 Single-Ended, Unipolar; 4 Single-Ended, Bipolar | ||
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
