AD7731BNZ
| Manufacturer | |
| Description | ADC Single Delta-Sigma 5Msps 24-bit Serial 24-Pin PDIP Single ADC Delta-Sigma 5Msps 24-bit Serial 24-Pin PDIP IC ADC 24BIT SIGMA-DELTA 24DIP AD7731BNZ, 24-Bit Analogue to Digital Converter, Differential, Serial, 24-Pin PDIP Analog to Digital Converters - ADC Low Noise 24-Bit High Throughput 24BIT ADC, SIGMA DELTA, 7731, DIP24 A/D converter IC 24 Bit DIL-24, AD7731BNZ, Analog Devices Analog Devices , 24 位 ADC, 差分输入, 串行接口, 24针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 15 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :7731 | ||
Electrical
| Interface | Serial (3-Wire, SPI) | Linearity | :0.0015% |
| S/N Ratio | 125 dB | Input Type | Voltage |
| Resolution | 24 Bit | Input Signal | Pseudo-Differential|Differential |
| INL/DNL (LSB) | 15ppm of FSR | Converter Type | General Purpose |
| Data Interface | DSP, Serial, SPI™ | Input Polarity | Unipolar|Bipolar |
| Number of Bits | 24 | Voltage Rating | 0.02V/0.04V/0.08V/0.16V/0.32V/0.6... |
| Data Rate (Max) | 6.4 kSPs | Current - Output | :10.3mA |
| Voltage - Supply | 5 V | Power Supply Type | Single |
| Resolution (Bits) | :24bit | Voltage Reference | External |
| Number of Channels | 3 Channel | Sampling Frequency | 5 Msps |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Analog and Digital |
| Power Dissipation (Max) | 67.5 mW | Voltage - Supply, Digital | :2.7V to 5.25V |
| Voltage Supply - Internal | :4.75V to 5.25V | Sampling Rate (Per Second) | 6.4k |
| Differential - Input:Output | Yes | S/N Ratio, ADCs / DACs (db) Typ | 125 dB |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 7.11mm | Height | 4.95mm |
| Length | 32.51mm | Weight | 0.000001 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :24 | Package / Case | 24PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 31.75 | Package Quantity | PDIP |
| Size / Dimension | 32.51 x 7.11 x 4.95mm | Number of Positions | 24 |
| Shell Size - Insert | 3.3 | Supplier Device Package | 24-PDIP |
Product Info
| Series | AD7731 | Base Unit | :7731 |
| Architecture | Delta-Sigma | Printed Circuit Board | 24 |
| Number of A/D Converters | 5|3 | Number of Inputs and Type | 3 Differential, Unipolar; 3 Differential, Bipolar; 5 Pseudo-Differential, Unipolar; 5 Pseudo-Differential, Bipolar |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

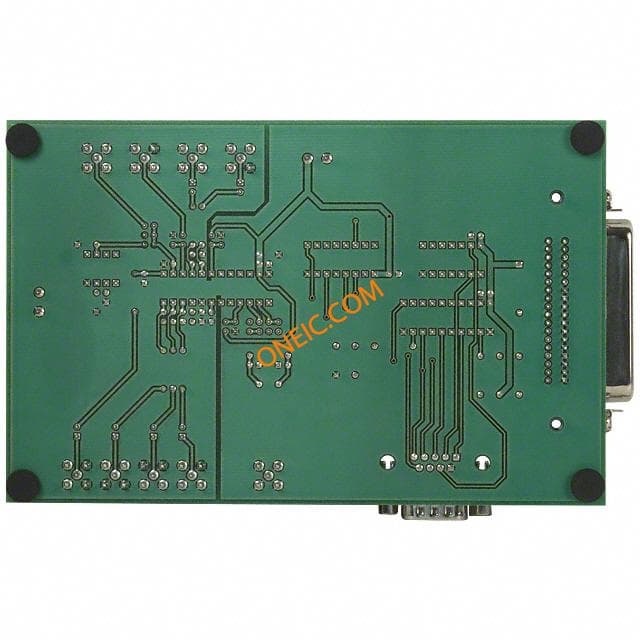

EVAL-AD7731EBZ
