AD7684BRMZRL7
| Manufacturer | |
| Description | ADC Single SAR 100ksps 16-bit Serial 8-Pin MSOP T/R Single ADC SAR 100ksps 16-bit Serial 8-Pin MSOP T/R IC ADC 16BIT 100KSPS DIFF 8MSOP AD7684BRMZRL7, 16-Bit Analogue to Digital Converter, Differential, SPI, 8-Pin MSOP Analog to Digital Converters - ADC 16-BIT 100 kSPS Analog Devices , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | AD7684BRMZRL7CT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | S/N Ratio | 91(Typ) dB |
| Input Type | Voltage | Resolution | 16 Bit |
| Input Signal | Differential | INL/DNL (LSB) | ±3LSB |
| Converter Type | General Purpose | Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Input Polarity | Bipolar | Number of Bits | 16 |
| Reference Type | External | Voltage Rating | ±5V |
| Data Rate (Max) | 100 kSPs | Ratio - S/H:ADC | Yes |
| Voltage - Supply | 5 V | Digital I/O Lines | 串行 （SPI） |
| Distortion Rating | ±3LSB | Voltage Reference | External |
| Number of Channels | 1 Channel | Sampling Frequency | 100 ksps |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Gain Bandwidth Product | +/- 15 LSB | Power - Average Forward | 4 mW |
| Power Dissipation (Max) | 6 mW | Sampling Rate (Per Second) | 100k |
| Differential - Input:Output | Yes | S/N Ratio, ADCs / DACs (db) Typ | 91 dB |
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Length - Overall | 3 | Package Quantity | MSOP |
| Size / Dimension | 3 x 3 x 0.85mm | Number of Positions | 8 |
| Shell Size - Insert | 0.85 | Supplier Device Package | 8-MSOP |
| Shell Size - Insert (Convert To) | SAR | ||
Product Info
| Type | S/H ADC | Series | AD7684 |
| Function | Y | Architecture | SAR |

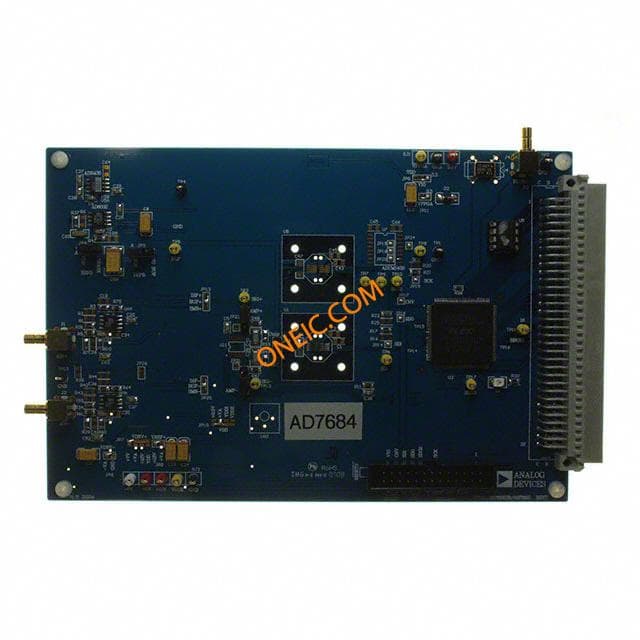

| Manufacturer | Analog Devices | Development Kit | EVAL-AD7684SDZ |
| Printed Circuit Board | 8 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 1 Differential, Bipolar | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
