AD7327BRUZ
| Manufacturer | |
| Description | ADC Single SAR 500ksps 13-bit Serial 20-Pin TSSOP Single ADC SAR 500ksps 13-bit Serial 20-Pin TSSOP IC ADC 12BIT+ SAR 8CHAN 20TSSOP Analog to Digital Converters - ADC 500kSPS 8-Ch True bipolar Input 12B |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (SPI, QSPI, Microwire) | Linearity | -0.9LSB/1.2LSB |
| S/N Ratio | 76(Min) dB | Input Type | Voltage |
| Resolution | 13 Bit | Input Signal | Single-Ended|Pseudo-Differential|... |
| INL/DNL (LSB) | ±1.1LSB | Power - Input | Dual |
| Power - Rated | 18 W | Converter Type | General Purpose |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Input Polarity | Unipolar|Bipolar |
| Number of Bits | 12 | Reference Type | External, Internal |
| Voltage Rating | 10V|±2.5V/±5V/±10V | Data Rate (Max) | 500 kSPs |
| Ratio - S/H:ADC | Yes | Voltage - Rated | 10/�2.5/�5/�10 |
| Voltage - Supply | 5 V, 15 V | Voltage Reference | Internal|External |
| Number of Channels | 8 Channel | Number of Elements | 1 |
| Sampling Frequency | 500 ksps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Dual | Gain Bandwidth Product | +/- 7 LSB |
| Power - Average Forward | 17 mW | Power Dissipation (Max) | 17 mW |
| Voltage - Supply, Analog | 12 V to 16.5 V | Differential Nonlinearity | -0.9/1.2LSB |
| Voltage - Supply, Digital | 2.7 V to 5.25 V | Sampling Rate (Per Second) | 500k |
| Differential - Input:Output | Yes | Voltage - Supply Span (Typ) | �15/3/�15/5 V |
| S/N Ratio, ADCs / DACs (db) Typ | 76 dB | ||
Mechanical
| Width | 4.4 | Height | 1.05 mm (Max) |
| Length | 6.5 mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 20TSSOP |
| Package Cooled | TSSOP | Length - Overall | 6.5 |
| Package Quantity | TSSOP | Number of Positions | 20 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 20-TSSOP |
Product Info
| Type | S/H ADC | Series | AD7327 |
| Architecture | SAR | Manufacturer | Analog Devices |
| Development Kit | EVAL-AD7327SDZ | Printed Circuit Board | 20 |
| Number of A/D Converters | 8|4/7|4 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

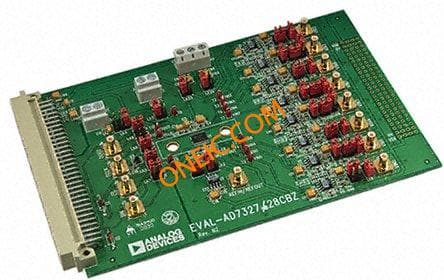

EVAL-AD7327CBZ
