点击放大查看
AD590JH
| Manufacturer | |
| Description | Temp Sensor Analog 3-Pin TO-52 IC TEMP TRANSDUCER 2-TERM TO52-3 AD590JH, Temperature Sensor ±5°C 4 to 30V 3-Pin TO-52 Board Mount Temperature Sensors 2-Terminal IC Temp TRANSDUCER IC, TEMPERATURE TRANSDUCER, TO52 Temperature sensor; temperature transducer; -55÷150°C; TO52; THT Temperature sensor TO-52, AD590JH, Analog Devices Analog Devices 温度传感器, ±5°C, 3针 TO-52封装 |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85235290 | Part Status | :590 |
| Rad Hardened | No | ||
Electrical
| Gain | + 1 uA / K | Accuracy | ±5(Max) °C |
| Output Type | Analog | Sensor Type | :TO-52 |
| Sensing Range | :-55°C to +150°C | Voltage Rating | 4 V |
| Current - Output | :298.2µA | Voltage - Supply | 4 to 30 V |
| Digital I/O Lines | 2-Wire, I2C, SMBus | Voltage - Supply (Min) | 30 V |
Mechanical
| Width | 5.84mm | Height | 3.81mm |
| Length | 5.84mm | Weight | 0.031 |
| Packaging | Bulk | Termination | :Through Hole |
| Mounting Type | Through Hole | Contact Timing | :± 5°C |
| Mounting Style | Through Hole | Number of Pins | :3 |
| Package / Case | 3TO-52 | Package Cooled | TO-52 |
| Material Finish | :- | Package Quantity | 67 |
| Size / Dimension | 5.84 x 5.84 x 3.81mm | Number of Positions | 3 |
| Supplier Device Package | Metal Can | ||
Product Info
| Spg | 67 | Type | temperature sensor |
| Series | AD590 | Function | Temp Sensor |
| Base Unit | :590 | Amplifier Type | :Temperature Transducer |
| Number of Units | 1 | ||
Environmental
| Temperature - Test | -55...150°C | Sensing Temperature | -55°C ~ 150°C |
| Operating Temperature | -55 °C | Temperature Coefficient | ±5°C |
| Maximum Temperature Limit | :150°C | Sensing Temperature - Local | :-55°C |
| Operating Temperature - Junction | 150C | ||
Documents & Media
Similar Parts

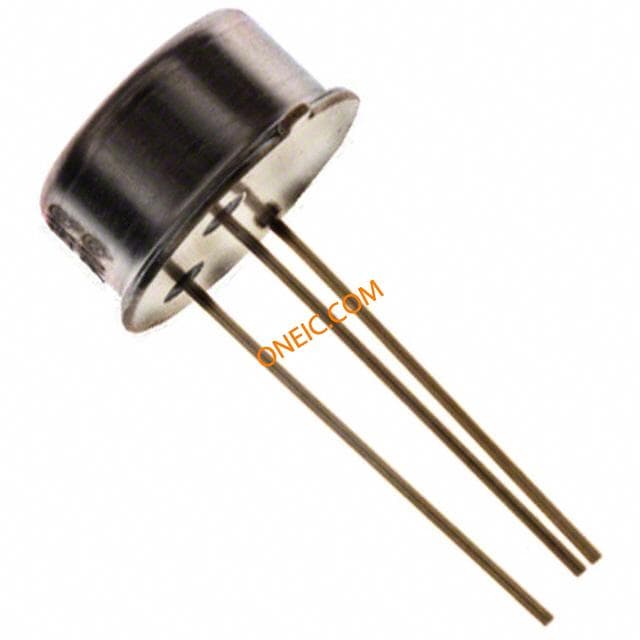

AD581LH
analog devices
V-Ref Precision 10V 10mA 3-Pin TO-5 Tube IC VREF SERIES PREC 10V TO-5-3 AD581LH, Voltage Reference 2.5V, 5mV Accuracy, 10mA 40V Max. 3-Pin TO-5 Voltage References HI PREC 10V IC REF IC, SERIES V-REF, 10V, 5mV, TO-5-3 Voltage reference, 10 V, TO-5, AD581LH, Analog Devices Analog Devices Fixed 10V 电压参考, ±0.05 %精确度, 10mA, 40 V输入, 3针 TO-5封装
AD8400ARZ10
analog devices
Digital Potentiometer 256POS 10KOhm Single 8-Pin SOIC N IC DCP SNGL 10K 8-SOIC AD8400ARZ10, Digital Potentiometer 10kΩ 256-Position Linear Serial-3 Wire, Serial-SPI 8-Pin SOIC N Digital Potentiometer ICs SGL CH 8-BIT DIGITAL POT 8BIT 10K, SMD, SOIC8 Potentiometer IC 10 kOhm SO-8, AD8400ARZ10, Analog Devices 10kΩ 256位置 线性 数字电位计 , 支持多种控制接口, 8针 SOIC封装
AD580JH
analog devices
V-Ref Precision 2.5V 3-Pin TO-52 IC VREF SERIES PREC 2.5V TO-52-3 AD580JH, Voltage Reference 2.5V, 0.4% 40V Max. 3-Pin TO-52 Voltage References HI PREC 2.5V IC REF IC, PRECISION, VOLT REF, 2.5V IC, SERIES V-REF, 2.5V, 75mV, TO-52-3 Voltage reference source; 2.5V; TO52 Voltage reference, 2.5 V, TO-52, AD580JH, Analog Devices Analog Devices Fixed 2.5V 电压参考, ±0.4 %精确度, 40 V输入, 3针 TO-52封装

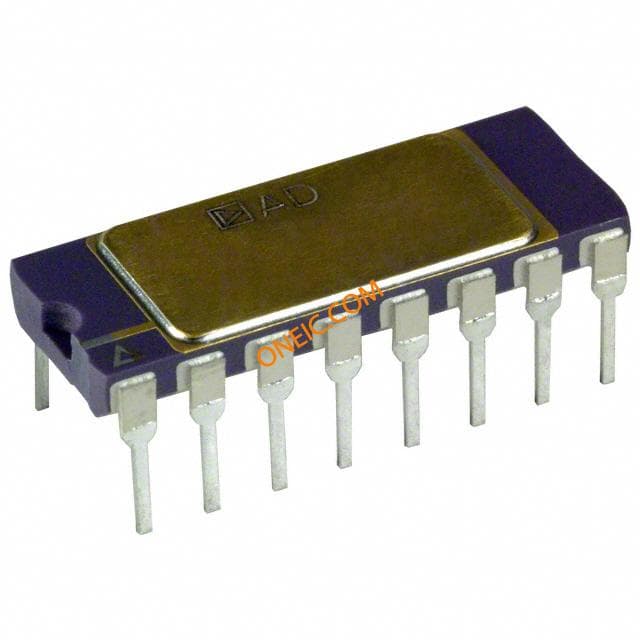

AD524ADZ
