AD5447YRUZ-REEL7
| Manufacturer | |
| Description | DAC 2-CH R-2R 12-bit 24-Pin TSSOP T/R IC DAC 12BIT DUAL MULT 24TSSOP Digital to Analog Converters - DAC Dual 12-bit Parallel IOUT IC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital to Analog Converters | Other Names | AD5447YRUZ-REEL7CT |
| Standard Package | Tape & Reel | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Interface | Parallel | Full Scale | ±25 mV |
| Resolution | 12 Bit | Output Type | Current |
| INL/DNL (LSB) | ±1 LSB | Power - Input | Single |
| Settling Time | 0.12 us | Converter Type | General Purpose |
| Data Interface | Parallel | Number of Bits | 12 |
| Reference Type | External | Data Rate (Max) | 21.3 Msps |
| Number of DAC's | 2 | Voltage - Supply | 5.5 V |
| Distortion Rating | +/- 1 LSB | Number of Outputs | 2 |
| Power Supply Type | Single | Voltage Reference | External |
| Number of Channels | 2 | Sampling Frequency | 21.3 MS/s |
| Voltage Supply Source | Single Supply | Power - Average Forward | 3.3 uW |
| Power Dissipation (Max) | 3.3 uW | Number of Outputs and Type | 2 Current, Unipolar; 2 Current, Bipolar |
| Sampling Rate (Per Second) | 21.3M | Voltage - Supply Span (Typ) | Not Required V |
| Common Mode Transient Immunity (Min) | Automotive | ||
Mechanical
| Width | 4.4 | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 24TSSOP |
| Package Cooled | TSSOP | Length - Overall | 7.8 |
| Package Quantity | TSSOP | Number of Positions | 24 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 24-TSSOP |
Product Info
| Series | AD5447 | Architecture | R-2R |

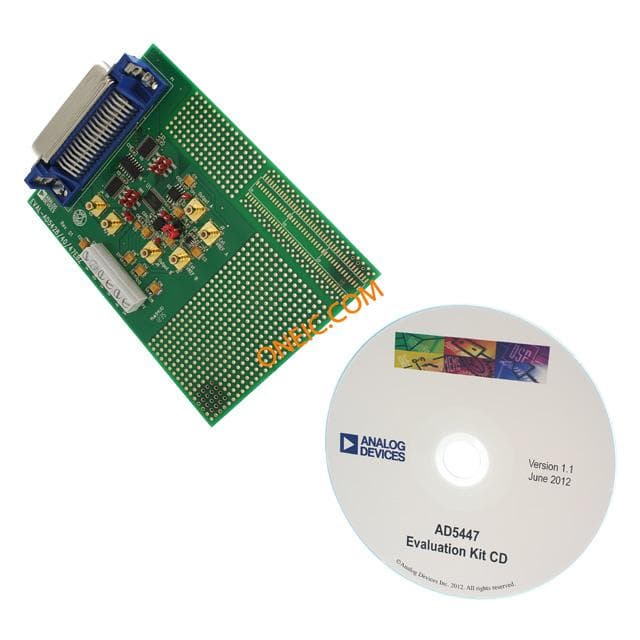

| Manufacturer | Analog Devices | Development Kit | EVAL-AD5447EBZ |
| Printed Circuit Board | 24 | Number of A/D Converters | 2 |
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | 125C |
