AD5379ABCZ
| Manufacturer | |
| Description | DAC 40-CH Resistor-String 14-bit 108-Pin CSP-BGA Tray IC DAC 14BIT 40CHAN 108CSPBGA AD5379ABCZ, 14-Bit 14 Bit DAC 40-channel 50ksps, Parallel, SPI, Microwire, 108-Pin CSP BGA Digital to Analog Converters - DAC IC 40-CH14-Bit |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital to Analog Converters | Standard Package | Trays |
| Factory Pack Quantity | 160 | Standard Package Name | BGA |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | Parallel|Serial (3-Wire, SPI, QSPI, Microwire) | Full Scale | ±12 mV |
| Resolution | 14 Bit | Output Type | Voltage |
| INL/DNL (LSB) | ±3 LSB | Settling Time | 30 us |
| Converter Type | General Purpose | Data Interface | Serial, Parallel |
| Number of Bits | 14 | Reference Type | External |
| Data Rate (Max) | 50 Ksps | Number of DAC's | 40 |
| Current - Supply | 28 mA | Voltage - Supply | +/- 16.5 V |
| Distortion Rating | +/- 3 LSB | Number of Outputs | 40 |
| Power Supply Type | Dual | Voltage Reference | External |
| Number of Channels | 40 Channel | Voltage Supply Source | Analog and Digital, Dual ± |
| Power - Average Forward | 2 W | Power Dissipation (Max) | 2 W |
| Delay Time - Propagation | 20µs | Number of Outputs and Type | 40 Voltage, Bipolar |
| Sampling Rate (Per Second) | 50k | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 7 | Packaging | Tray |
| Mounting Type | Surface Mount | Connector Type | Serial, Parallel |
| Mounting Style | SMD/SMT | Package / Case | 108CSP-BGA |
| Length - Overall | 7 | Package Quantity | CSP-BGA |
| Number of Positions | 108 | Shell Size - Insert | 1.4 |
| Supplier Device Package | 108-CSPBGA (13x13) | ||
Product Info
| Series | AD5379 | Architecture | Resistor-String |

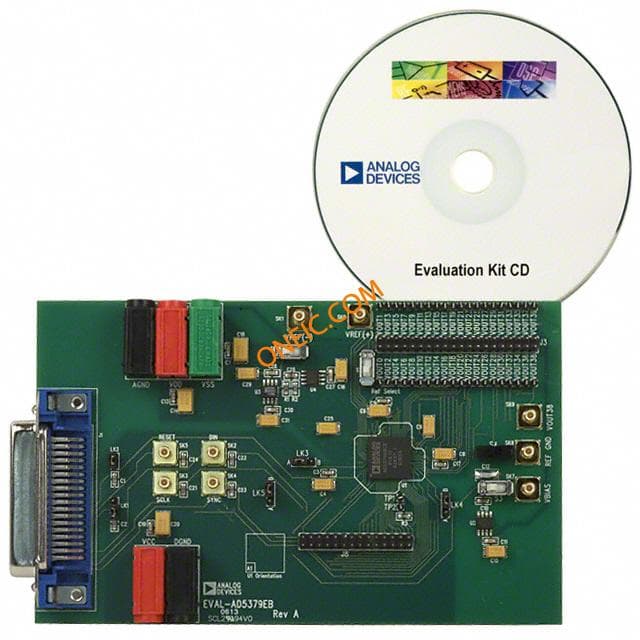

| Manufacturer | Analog Devices | Development Kit | EVAL-AD5379EBZ |
| Printed Circuit Board | 108 | Number of A/D Converters | 40 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
