AD5379ABC
| Manufacturer | |
| Description | DAC 40-CH Resistor-String 14-bit 108-Pin CSP-BGA Tray IC DAC 14BIT 40CH 108-CSPBGA Digital to Analog Converters - DAC IC 40-CH14-Bit |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital to Analog Converters | Standard Package | Trays |
| Standard Package Name | BGA | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
Electrical
| Interface | Parallel|Serial (3-Wire, SPI, QSPI, Microwire) | Full Scale | ±12 mV |
| Resolution | 14 Bit | Output Type | Voltage |
| INL/DNL (LSB) | ±3 LSB | Settling Time | 30 us |
| Converter Type | General Purpose | Data Interface | Serial, Parallel |
| Number of Bits | 14 | Reference Type | External |
| Data Rate (Max) | 50 Ksps | Number of DAC's | 40 |
| Current - Supply | 28 mA | Voltage - Supply | Analog and Digital, Dual ± |
| Number of Outputs | 40 | Power Supply Type | Dual |
| Number of Channels | 40 Channel | Voltage Supply Source | Analog and Digital, Dual ± |
| Power - Average Forward | 2 W | Delay Time - Propagation | 20µs |
| Number of Outputs and Type | 40 Voltage, Bipolar | Sampling Rate (Per Second) | 50k |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Packaging | Tray | Mounting Type | Surface Mount |
| Connector Type | Serial, Parallel | Mounting Style | SMD/SMT |
| Package / Case | 108CSP-BGA | Package Quantity | CSP-BGA |
| Number of Positions | 108 | Supplier Device Package | 108-CSPBGA (13x13) |
Product Info
| Series | AD5379 | Architecture | Resistor-String |

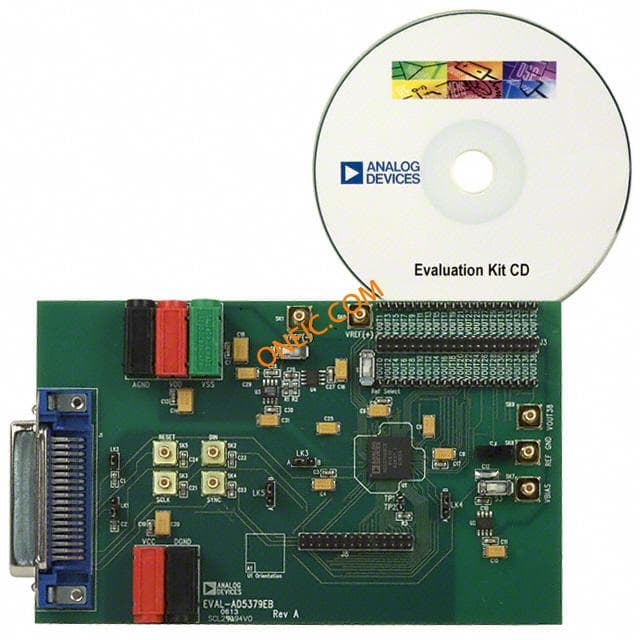

| Manufacturer | Analog Devices | Development Kit | EVAL-AD5379EBZ |
| Number of A/D Converters | 40 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
