AD5258BRMZ10
| Manufacturer | |
| Description | Digital Potentiometer 64POS 10KOhm Single 10-Pin MSOP IC POT DGTL I2C 10K 64P 10MSOP AD5258BRMZ10, Digital Potentiometer 10kΩ 64-Position Serial-I2C 10-Pin MSOP Digital Potentiometer ICs IC 6-Bit I2C EEMEM IC, DIGIPOT 6BIT I2C EEMEM 10K, SMD 10kΩ 64位置 数字电位计, 串行 - I2C接口, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85235290 |
| Part Status | :5258BRMZ10 | Rad Hardened | No |
Electrical
| Interface | I²C (Device Address) | Tolerance | 30 % |
| Resistance | 10 kOhm | Memory Type | Non-Volatile |
| Power - Input | Analog and Digital | Current - Output | 4 uA |
| Voltage - Supply | 2.7 V ~ 5.5 V | Power Supply Type | Analog and Digital |
| Resistance (Ohms) | 10k | Number of Channels | :1 |
| Number of Elements | 1 | Resistance Tolerance | :± 30% |
| Voltage - Supply Span (Typ) | Not Required V | Resistance - Initial (Ri) (Min) | 10 kohm |
Mechanical
| Taper | :Linear | Width | 3mm |
| Height | 0.85mm | Length | 3mm |
| Weight | 0.000045 | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10MSOP |
| Package Cooled | MSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3 | Package Quantity | MSOP |
| Size / Dimension | 3 x 3 x 0.85mm | Number of Positions | 64 |
| Shell Size - Insert | 0.85 | Supplier Device Package | 10-MSOP |
Product Info
| Series | AD5258 | Base Unit | :5258 |
| Wiper Memory | Non Volatile | Control Interface | Serial (I2C) |
| Number of Circuits | 1 | Number of Taps/Steps | 64 |
| Printed Circuit Board | 10 | Number of A/D Converters | Single |
| Number of Positions Loaded | :64 | Number of Positions (Convert To) | :64 |
Environmental
| Operating Temperature | -40 to 85 °C | Temperature Coefficient | 200 ppm/°C Typical |
Documents & Media
Similar Parts

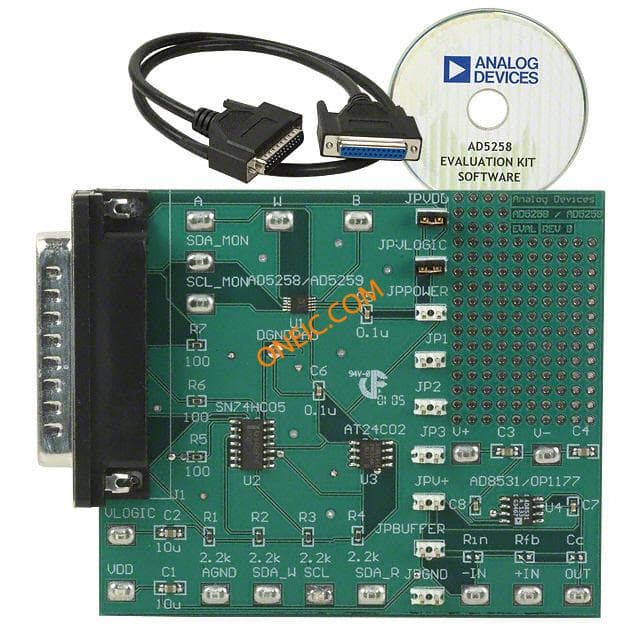

AD5258EVAL
