AD210JN
| Manufacturer | |
| Description | SP Amp ISOL Amp Single 16.5V 12-Pin PDIP Tube IC OPAMP ISOLATION 20KHZ 12DIP AD210JN, Isolation Amplifier, 15V, 12-Pin PDIP Isolation Amplifiers 120 kHz Bandwidth Iso AMP IC IC, AMP ISOLATION, DIP30, 210 Analog Devices 隔离放大器, 15 V, 12引脚 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 9 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Not Compliant | Tariff No | 85423300 |
| Part Status | :210 | Rad Hardened | No |
Electrical
| Gain | 1 V/V to 100 V/V | Isolation | 120dB |
| Linearity | :0.025% | Slew Rate | 1 V/µs |
| Output Type | No | Power - Input | Single |
| CMRR, PSRR (Typ) | 120 dB | Current - Output | 50mA |
| Voltage - Supply | 13.5 V | Power Supply Type | Single |
| Number of Channels | 1 | Number of Elements | 2 |
| Resistance - Input | 1000000 MOhm | Voltage - Isolation | 2500 V |
| Current - Input Bias | 30pA | Number of ADCs / DACs | :1 |
| Voltage - Input (Min) | 40 dB | Gain Bandwidth Product | :20kHz |
| Rail-to-Rail Operation | No | Current - Input Bias (Max) | 0.0004@15V |
| Current - Output / Channel | 5mA | Voltage - Supply Span (Typ) | Not Required V |
| Voltage - Input Offset (Max) | :45mV | ||
Mechanical
| Width | 25.4mm | Height | 8.91mm |
| Length | 53.3mm | Weight | 0.005 |
| Bandwidth | 20 kHz | Packaging | Tube |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | -3db Bandwidth | 20kHz |
| Mounting Style | Through Hole | Number of Pins | :30 |
| Package / Case | 12PDIP | Package Cooled | PDIP |
| Material Finish | :- | Package Quantity | PDIP |
| Size / Dimension | 8.91 x 53.3 x 25.4mm | Number of Positions | 12 |
| Supplier Device Package | 12-PDIP | ||
Product Info
| Type | Isolation Amplifier | Series | AD210 |
| Base Unit | :210 | Amplifier Type | Isolation |
| Number of Circuits | 1 | Other Specifications | :3 Port Isolation |
Environmental
| Temperature Range | :Commercial | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts

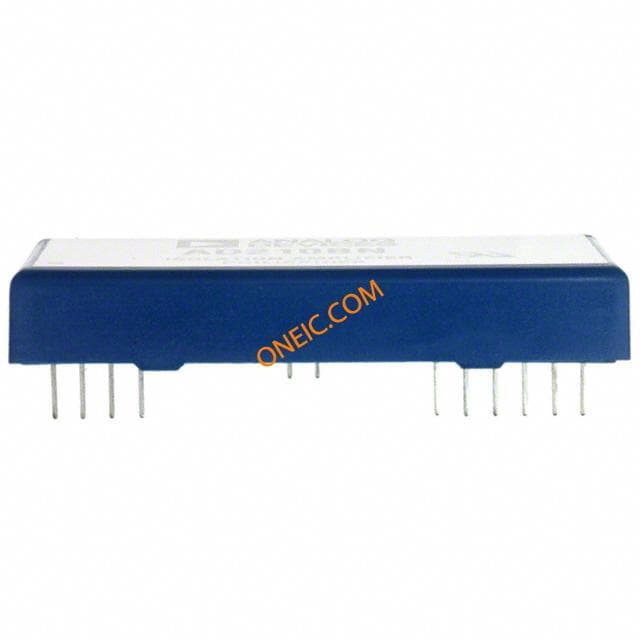

AD210BN
