MAX7219EWG
| Manufacturer | |
| Description | LED DRVR 64Segment 5V 24-Pin SOIC W LED Display Drivers 8-Digit LED Display Driver LED Display Drivers Integrated Circuits (ICs) IC LED DISPLAY DVR 8DGT 24-SOIC 8-Digit LED Display Driver Serial SOIC24 DRIVER, LED, 8X7SEG/64, 10MHZ, 24SOIC 8数字 56段 LED 驱动器, 5.5 V, 24引脚 SOIC封装 |
| Category |
Business
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 30 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Dimming | :Analogue, Digital | Interface | 4-Wire Serial |
| Display Type | LED | Power - Rated | 941 mW |
| Voltage Rating | 5.5 V | Current - Output | 330mA |
| Current - Supply | 330 mA | Voltage - Supply | 4 to 5.5 V |
| Number of Outputs | :16 | Frequency - Switching | :10MHz |
| Voltage - Input (Min) | :4V | Power Dissipation (Max) | 941 mW |
| Resistor Matching Ratio | 3% | Current - Output High, Low | -2000(Min) uA |
| Voltage - Continuous Operating (Max) (MCOV) | :5.5V | ||
Mechanical
| Width | 7.6mm | Height | 2.35mm |
| Length | 15.6mm | Weight | 0.001 |
| Packaging | Tube | Case Color | :SOIC |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24SOIC W |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 15.6 x 7.6 x 2.35mm | Number of Positions | 24 |
| Supplier Device Package | 24-SOIC W | ||
Product Info
| Series | MAX7219 | Topology | :- |
| Base Unit | :7219 | Configuration | 7 Segment + DP |
| Number of Segments | 64 | Digits or Characters | 8 |
| Application Specifics | :Display, Panel Meters | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
Documents & Media
Similar Parts
923660-24
3m interconnect solutions
24-PIN SOIC WIDE TEST CLIP, ALLOY Test Clips 24P SOIC SMT WDE ALY SOIC Surface Mount 24-PIN TEST CLIP ALLOY SOIC .30" TEST CLIP, SOIC, 24WAY
224-7397-55-1902
3m interconnect solutions

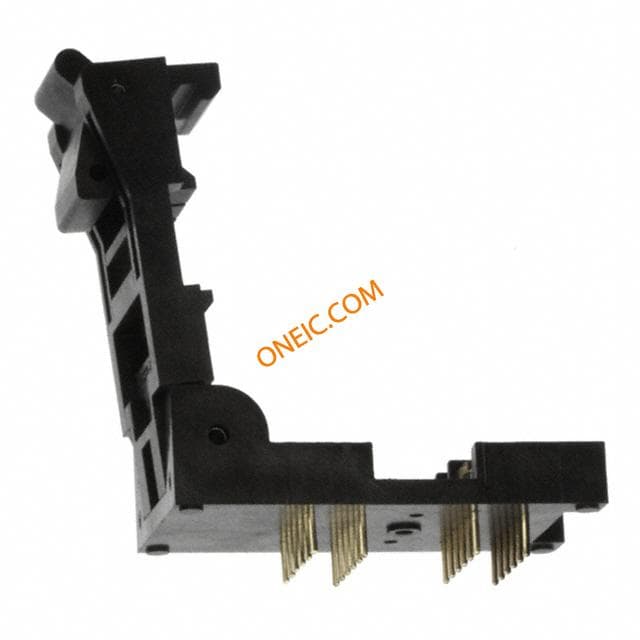

Conn SOIC Socket SKT 24 POS Solder ST Thru-Hole Compact envelope w/ tweezer slot for easy loading SOCKET SOIC 24POS LIDDED 24 way clam-shell design SOIC socket IC & Component Sockets BURN-IN SOIC SOCKET 24 Leads SOCKET IC, SOIC, ZIF, 24WAY 3M 1.27mm 节距, 24 路 通孔 SOIC 测试插座
24-350000-11-RC
Aries Electronics

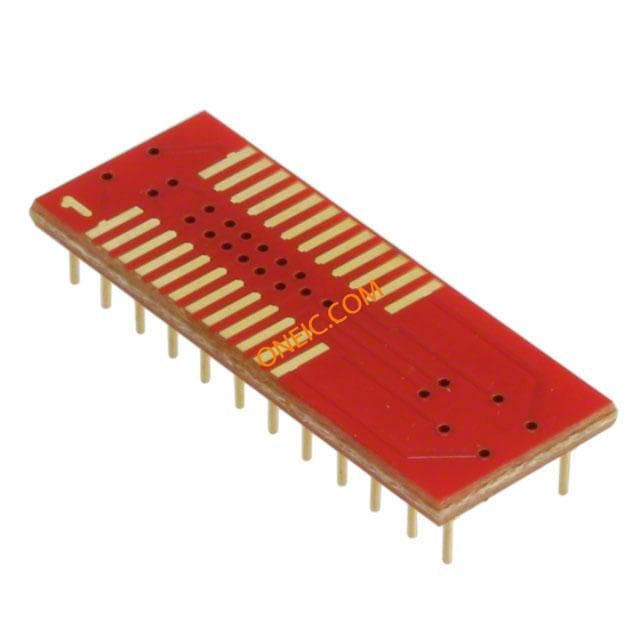

SOCKET ADPTR SOIC/24PIN .300 DIP IC & Component Sockets SOIC DIP ADAPTER ADAPTOR, SOIC TO DIL, 24WAY
