LTM4604IV#PBF
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.375V to 5.5V uModule 66-Pin LGA IC DC/DC UMODULE 4A 66-LGA LTM4604IV#PBF, Switching Regulator, Buck Controller, 5A, Adjustable, 0.8 to 5V, 1250kHz, 66-Pin LGA Conv DC-DC Single-OUT Step Down 66-Pin LGA IC, BUCK, UMODULE, 4A, 66LGA DC-DC converter; step down; Uin:2.375÷5.5V; Uout:0.8÷5V; 8A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LTM4604IVPBF | Standard Package | 170 |
| Standard Package Name | LGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Isolation | Non-Isolated | Efficiency | 95% |
| Output Type | Adjustable | Power - Max | 20W |
| Regulator Type | Buck Controller | Voltage Rating | 5.5 V |
| Line Regulation | 0.2% | Load Regulation | 0.6% |
| Current - Output | 4A | Voltage - Supply | :5.5V |
| Number of Outputs | 1 | Power (Watts) - Max | 20W |
| Switching Regulator | Yes | Frequency - Switching | 1250 kHz |
| Voltage - Input (Min) | 0.8 ~ 5 V | Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 0.8 V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 9mm | Height | 2.3mm |
| Length | 15mm | Weight | 0.0002 |
| Packaging | Tray | Mounting Type | Surface Mount |
| Number of Pins | :66 | Package / Case | 66-LGA |
| Package Cooled | LGA | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 15 | Package Quantity | LGA |
| Size / Dimension | 0.59" L x 0.35" W x 0.09" H (15.0mm x 9.0mm x 2.3mm) | Number of Positions | 66 |
| Shell Size - Insert | 2.3 | ||
Product Info
| Spg | 170 | Type | Step Down |
| Features | OCP, OTP, UVLO | Base Unit | :4604 |
| Number of Units | 170 | Utilized IC / Part | step down |
| Printed Circuit Board | 66 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
Online Document
Similar Parts
LTC2900-1CMS#PBF
Analog Devices, Inc.
Volt Supervisor Monitor 1.5V/1.8V/2.5V/3V/3.3V/5V 10-Pin MSOP IC MON SUPP QUAD OPEN DRN 10MSOP Volt Supervisor Monitor 10-Pin MSOP V MONITOR, QUAD, OPEN DRN, 10MSOP Linear Technology , 4通道 电压监控器, 3.036V, 手动复位功能, 用于可编程四电源监控器, 10针 MSOP封装
$24.5888
Details

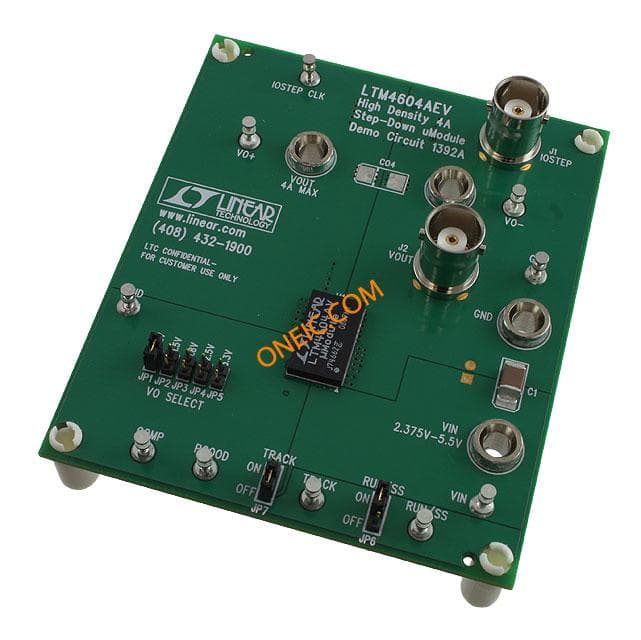

DC1392A
