LTC4266IGW#PBF
| Manufacturer | |
| Description | POE Controller 25.5W 36-Pin SSOP IC POE 802.3AT QUAD PSE 36-SSOP Power Over Ethernet Controller 36-Pin SSOP IC, QUAD, POE CONTROLLER, 3.3V, 36SSOP |
| Category |
Business
| Other Names | LTC4266IGWPBF | Standard Package | 32 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | IEEE802.3af |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| Frequency | :1MHz | Duty Cycle | :6.3% |
| Power - Max | 25.5W | Voltage Rating | :57V |
| Current - Output | 2.4mA | Voltage - Supply | 45 V ~ 57 V |
| Number of Channels | 4 | Must Release Voltage | :25V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Weight | 0.000204 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | :36 | Package / Case | 36-BSOP (0.295", 7.50mm Width) |
| Package Cooled | SSOP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SSOP | Number of Positions | 36 |
| Supplier Device Package | 36-SSOP | ||
Product Info
| Type | Controller (PSE) | DELETED | Compliant |
| Auxiliary Sense | No | Internal Switch(s) | No |
| DigiKey Programmable | Yes | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts

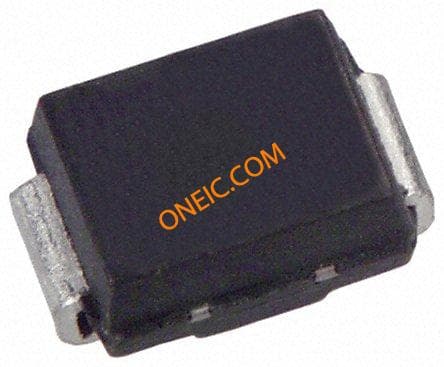

SMAJ58A
Bourns
TVS Diodes - Transient Voltage Suppressors 58volts 5uA 4.3 Amps Uni-Dir Diode TVS Single Uni-Dir 58V 400W 2-Pin SMA TVS DIODE 58VWM SMD TVS Diode Single Uni-Dir 58V 400W SMA DIODE, FULL REEL DIODE, TVS, 58V, 400W, UNI, 5%, SMA Bourns R3 单向 TVS 二极管, 400W, 93.6V, 2针 DO-214AC封装
SMAJ58A
Littelfuse
TVS Diodes - Transient Voltage Suppressors 58Vr 400W 4.3A 5% UniDirectional TRANSIL UNI 0,4KW 68V SMA TVS DIODE 58VWM 93.6VC SMA TVS Diode Uni-Directional SMAJ58A 93.6V, 400W, DO-214AC 2-Pin Diode TVS Single Uni-Dir 58V 400W 2-Pin DO-214-AC T/R TVS DIODE, 400W, 58V, DO-214AC DIODE, TVS, 58V, 400W, UNI, 5%, SMA TVS DIODE, 400W, 58V, DO-214AC, FULL REEL Diode: transil; 400W; 58V; 4.3A; unidirectional; DO214AC Littelfuse R3 单向 TVS 二极管, 400W, 93.6V, 2针 DO-214AC封装
SMAJ58A
Taiwan Semiconductor
TVS Diodes - Transient Voltage Suppressors 58V 300W 5% Uni TVS Diode Uni-Directional SMAJ58A 93.6V, SMA 2-Pin
85759-1001
molex
Conn RJ-45 F 8 POS 1.02mm Solder RA Thru-Hole 19 Terminal 1 Port Tray Cat 5e Modular Connectors / Ethernet Connectors PoE PLUS PSE ICM 1x1 LED GRN GRN JACK, RJ45, POE+, PSE, CAT5E

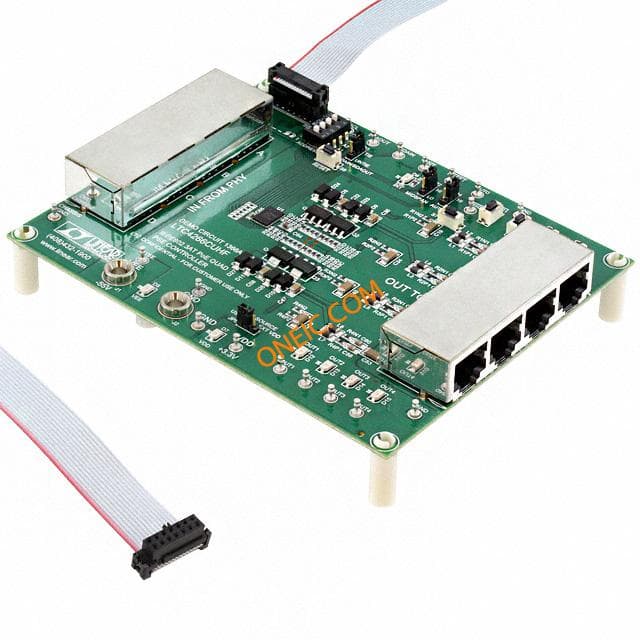

DC1366A
