LTC3604EUD#PBF
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 3.6V to 15V 16-Pin QFN EP IC REG BUCK SYNC 2.5A 16QFN BUCK, SYNCH, 15V, 2.5A, 16QFN DC-DC converter; step down; Uin:3.6÷15V; Uout:0.6÷14.52V; 3.4A Linear Technology 直流 - 直流开关调节器, 降压, 2.5A, 3.6 → 15 V输入, 0.6 → 5 V输出, 4 MHz, 16针 QFN封装 |
| Category |
Business
| Other Names | LTC3604EUDPBF | Standard Package | 121 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| PWM Type | Current Mode, Burst Mode® | Efficiency | 95 % |
| Voltage Rating | 15 V | Line Regulation | 0.01%/V |
| Load Regulation | 0.1% | Current - Output | 2.5A |
| Number of Outputs | 1 | Regulator Topology | Step Down |
| Switching Regulator | Yes | Frequency - Switching | 800kHz ~ 4MHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 3.6 V ~ 15 V |
| DC Voltage - Input (Min) | 3.6 V | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Weight | 0.0001 | Packaging | Tube |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Number of Pins | :16 | Package / Case | 16-WFQFN Exposed Pad |
| Package Cooled | QFN EP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | QFN EP | Number of Positions | 16 |
| Supplier Device Package | 16-QFN-EP (3x3) | ||
Product Info
| Spg | 49 | Type | Step Down |
| Number of Units | 1 | Utilized IC / Part | step down |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
7447745012
Wurth Electronics

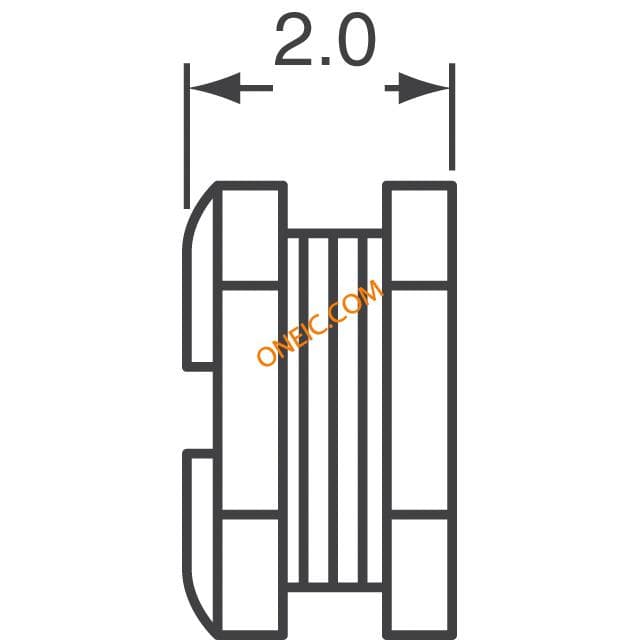

固定インダクタ WE-PD2 Inductor 1.2uH 100kHz 4.8A INDUCTOR POWER 1.2UH 4.8A SMD Inductor SMD WE-PD2 5820 1,2uH 4,6A Fixed Inductors WE-PD2 Inductor 1.2uH 100kHz 4.8A CHOKE, SMD, 1UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 1.2 μH ±20%, 4.8A Idc
74477450056
Wurth Electronics

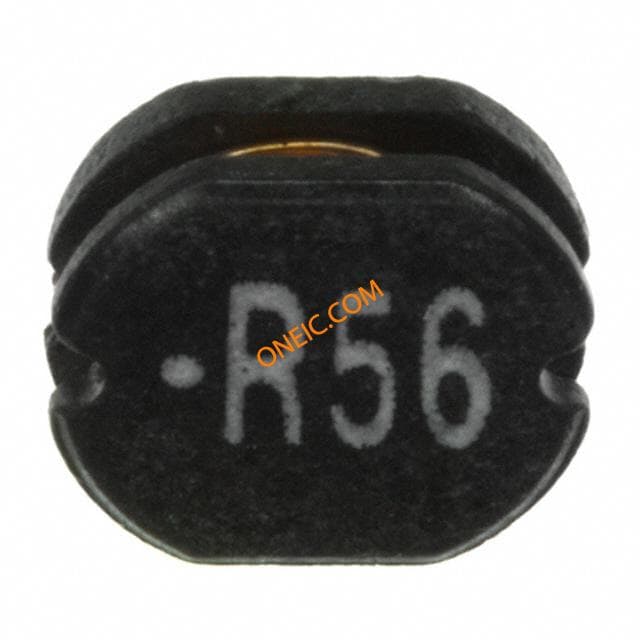

固定インダクタ Pwr Choke Inductor 0.56uH 20% 6.5A INDUCTOR POWER .56UH 6.5A SMD Inductor SMD WE-PD2 5820 0,56uH 6,5A Fixed Inductors Pwr Choke Inductor 0.56uH 20% 6.5A CHOKE, SMD, 0.56UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 560 nH ±20%, 6.5A Idc
74477450027
Wurth Electronics

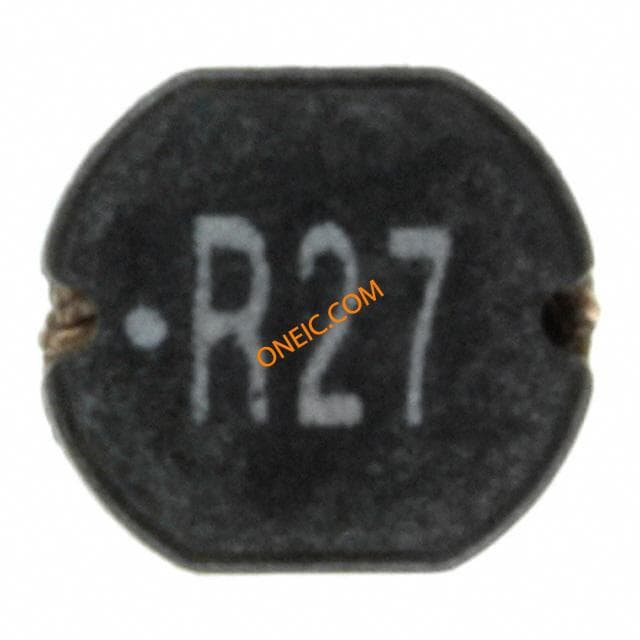

固定インダクタ Pwr Choke Inductor 0.27uH 20% 8.2A INDUCTOR POWER .27UH 8.2A SMD Inductor SMD WE-PD2 5820 0,27uH 9,5A Fixed Inductors Pwr Choke Inductor 0.27uH 20% 8.2A CHOKE, SMD, 0.27UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 270 nH ±20%, 8.2A Idc
