LTC2262CUJ-14#PBF
| Manufacturer | |
| Description | Single ADC Pipelined 150Msps 14-bit Parallel/LVDS 40-Pin QFN EP IC ADC 14BIT 150MSPS 40-QFN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 61 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Interface | Parallel|LVDS | Linearity | �1LSB |
| Input Type | Voltage | Resolution | 14bit |
| Input Signal | Differential | INL/DNL (LSB) | ±4LSB |
| Power - Input | Single | Converter Type | General Purpose |
| Data Interface | Parallel | Input Polarity | Bipolar |
| Number of Bits | 14 | Voltage Rating | 1Vp-p/2Vp-p |
| Voltage - Rated | �0.5/�1 | Voltage - Supply | Not Required V |
| Voltage Reference | Internal|External | Number of Elements | 1 |
| Sampling Frequency | 150Msps | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Differential Nonlinearity | ±1LSB |
| Sampling Rate (Per Second) | 150M | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 6 | Packaging | Tube |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad | Package Cooled | QFN EP |
| Length - Overall | 6 | Package Quantity | QFN EP |
| Number of Positions | 40 | Shell Size - Insert | 0.75(Max) |
| Supplier Device Package | 40-QFN (6x6) | ||
Product Info
| Architecture | Pipelined | Printed Circuit Board | 40 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 1 Differential |
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
Documents & Media
PDF Document
Similar Parts
DC1369A-N
Analog Devices, Inc.
BOARD DEMO 150MSPS LTC2262-12 12BIT ADC Eval Brd, Rq. DC1371 & DC1075
$12.0768
Details
DC1369A-M
Analog Devices, Inc.

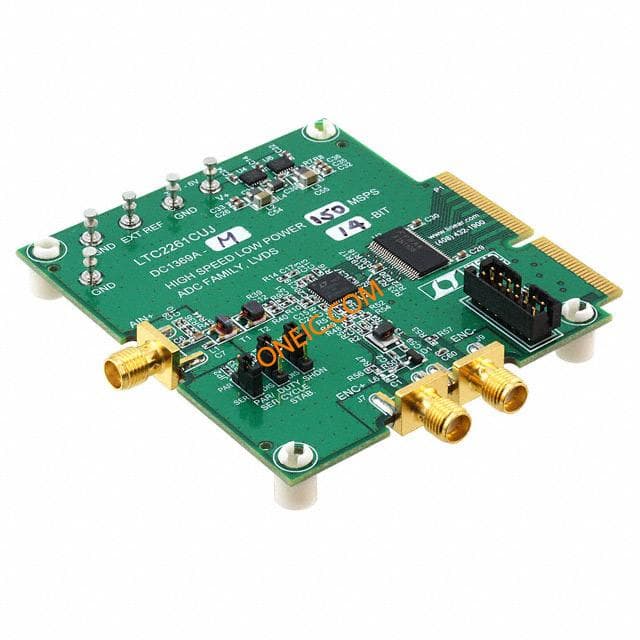

BOARD DEMO 150MSPS LTC2262-14 14BIT ADC Eval Brd, Rq. DC1371 & DC1075
