LTC2258CUJ-14#TRPBF
| Manufacturer | |
| Description | Single ADC Pipelined 65Msps 14-bit Parallel/Serial (SPI)/LVDS 40-Pin QFN EP T/R IC ADC 14BIT 65MSPS 1.8V 40-QFN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 2,000 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | Parallel|Serial (SPI)|LVDS | Input Type | Voltage |
| Resolution | 14bit | Input Signal | Differential |
| INL/DNL (LSB) | ±3LSB | Converter Type | General Purpose |
| Data Interface | Parallel, Serial, SPI | Number of Bits | 14 |
| Voltage Rating | 1Vp-p/2Vp-p | Voltage - Supply | 1.8 |
| Voltage Reference | Internal|External | Sampling Frequency | 65Msps |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Power Dissipation (Max) | 177 | Differential Nonlinearity | ±0.8LSB |
| Sampling Rate (Per Second) | 65M | Differential - Input:Output | Yes |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 6 | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad | Length - Overall | 6 |
| Package Quantity | QFN EP | Number of Positions | 40 |
| Shell Size - Insert | 0.75(Max) | Supplier Device Package | 40-QFN (6x6) |
Product Info
| Architecture | Pipelined | Printed Circuit Board | 40 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 1 Differential |
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
Documents & Media
PDF Document
Online Document
Similar Parts

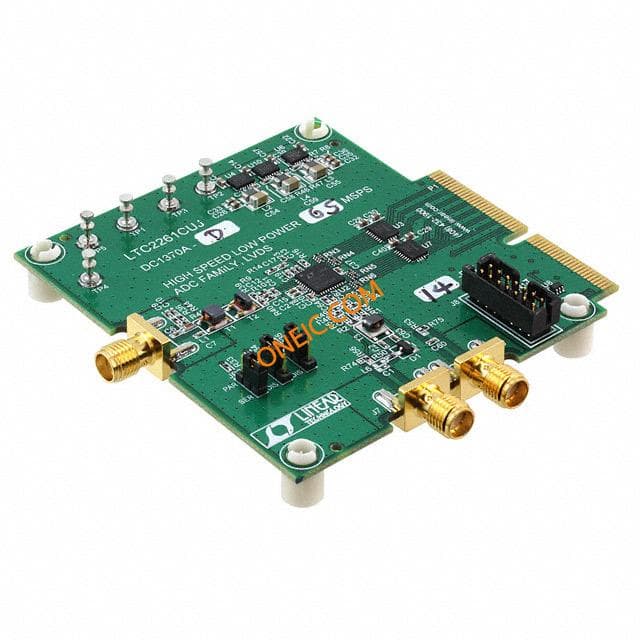

DC1370A-D
Analog Devices, Inc.
BOARD DEMO 65MSPS LTC2258-14 14BIT ADC Eval Brd, Rq. DC890, LVDS_XFMR & DC1075
$1886.7960
Details

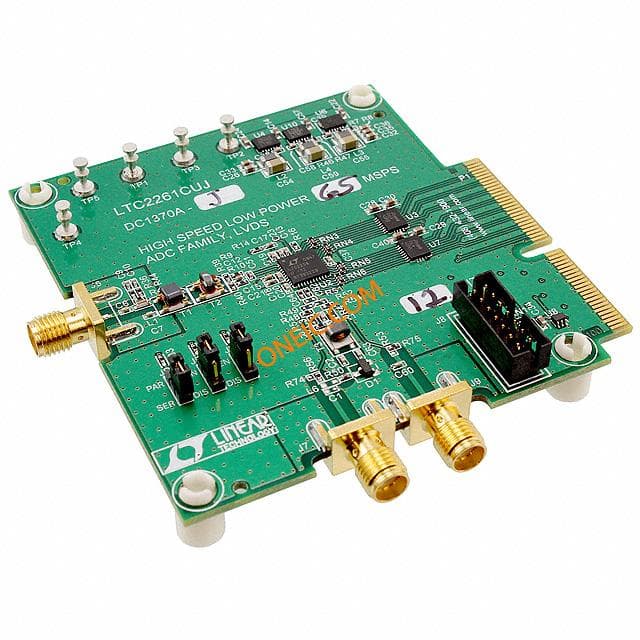

DC1370A-J
