LTC2209CUP#TRPBF
| Manufacturer | |
| Description | Single ADC Pipelined 160Msps 16-bit Parallel/LVDS 64-Pin QFN EP T/R IC ADC 16BIT 160MSPS 64-QFN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 2,000 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | Parallel|LVDS | Input Type | Voltage |
| Resolution | 16bit | Input Signal | Differential |
| INL/DNL (LSB) | ±5.5LSB | Converter Type | General Purpose |
| Data Interface | Parallel | Number of Bits | 16 |
| Voltage Rating | 1.5Vp-p/2.25Vp-p | Voltage - Supply | 3.3 |
| Voltage Reference | Internal|External | Sampling Frequency | 160Msps |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Power Dissipation (Max) | 1980 | Differential Nonlinearity | ±1LSB |
| Sampling Rate (Per Second) | 160M | Differential - Input:Output | Yes |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 9 | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Package / Case | 64-WFQFN Exposed Pad | Length - Overall | 9 |
| Package Quantity | QFN EP | Number of Positions | 64 |
| Shell Size - Insert | 0.75(Max) | Supplier Device Package | 64-QFN (9x9) |
Product Info
| Architecture | Pipelined | Printed Circuit Board | 64 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 1 Differential |
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
Documents & Media
Online Document
Similar Parts

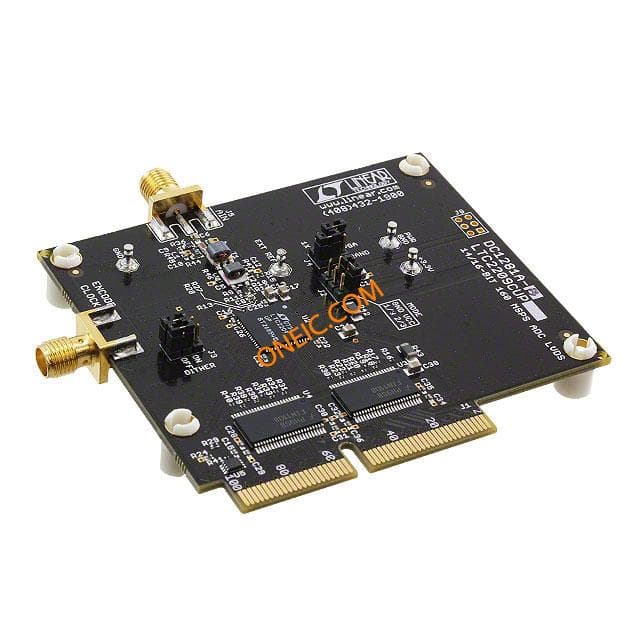

DC1281A-B
Analog Devices, Inc.
BOARD DEMO 16BIT 160MSPS LTC2209 16BIT ADC Eval Brd, Rq. DC1371
$12.2828
Details

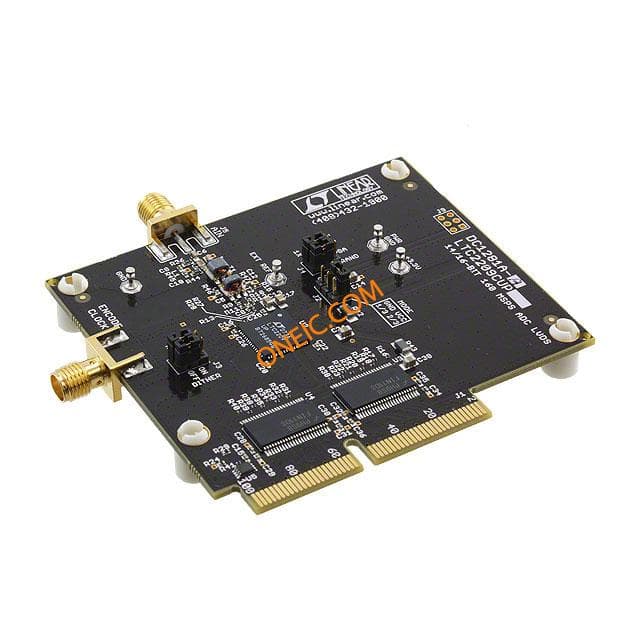

DC1282A-A
