LT4356CMS-1#PBF
| Manufacturer | |
| Description | Hot Swap Controller 1-CH 80V 10-Pin MSOP IC OVERVOLT PROT REG 10-MSOP Hot Swap Controller LT4356CMS-1#PBF, Positive Voltage, 4 to 80V, MSOP, 10-Pin SURGE STOPPER, 80VIN, 10MSOP 正电压 热交换控制器, 4 → 80 V, 10针 MSOP封装 |
| Category |
Business
| Other Names | LT4356CMS1PBF | Standard Package | 50 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | Fault Protection | Latched Off |
Electrical
| External FET | N-Channel | Voltage Rating | 4 → 80 V |
| Current - Supply | 0.025 | Voltage - Supply | :4V |
| Voltage - Working | 4 ~ 80V | Number of Channels | 1 |
| Voltage - Clamping | 27V Adj | Voltage - Threshold | 51mV |
| Voltage - Supply (Min) | 4 V | External Sense Resistor | Yes |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 3 mm | Width | 3mm |
| Height | 0.86mm | Length | 3mm |
| Weight | 0.000025 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | :10 | Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Package Cooled | MSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3 mm | Package Quantity | MSOP |
| Size / Dimension | 3 x 3 x 0.86mm | Number of Positions | 10 |
| Supplier Device Package | 10-MSOP | ||
Product Info
| Type | Positive High Voltage | Technology | Mixed Technology |
| Applications | Automotive | Controller Type | Positive Voltage |
| Internal Switch(s) | :No | Number of Circuits | 1 |
| RF Family/Standard | LT4356-1 | ||
Environmental
| Operating Temperature | +70 °C | Operating Temperature - Junction | 70C |
Documents & Media
Similar Parts
SI2328DS-T1-E3
Vishay Intertechnology, Inc.
Trans MOSFET N-CH 100V 1.15A 3-Pin TO-236 T/R N-CHANNEL-FET 1,5A 100V SOT23 MOSFET N-CH 100V 1.15A SOT23-3 SI2328DS-T1-E3, N-channel MOSFET Transistor 1.15A 100V, 3-Pin TO-236 MOSFET, N, SOT-23 N CH MOSFET, FULL REEL TRANSMOSFETN-CH100V1.15A3-PINTO-236T/R Vishay Si N沟道 MOSFET , 1.15 A, Vds=100 V, 3针 TO-236封装 MOSFET 100V 1.5A

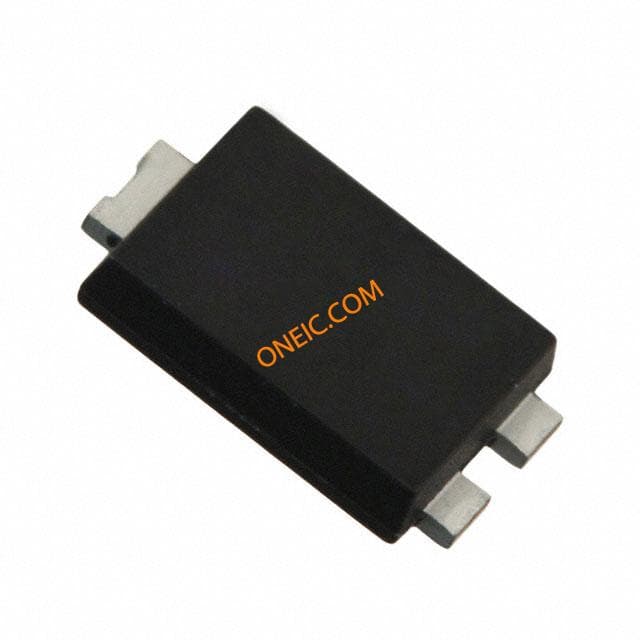

PDS5100-13
Diodes Inc.
Schottky Diodes & Rectifiers 5.0A 100V LFF Diode Schottky 100V 5A 3-Pin(2+Tab) PowerDI 5 T/R PDS5100-13 SCHOTTKY-DIODE 100V 5A POWERDI5 DIODE SCHOTTKY 100V 5A POWERDI5 SCHOTTKY RECTIFIER POWERDI5

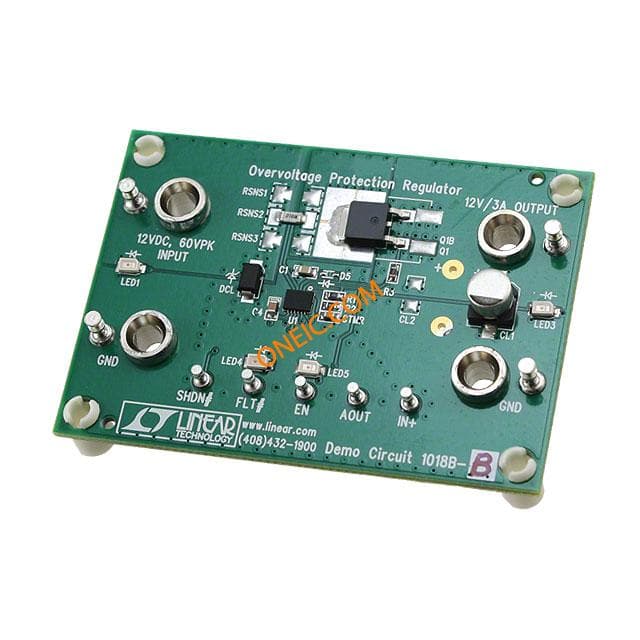

DC1018B-B
Analog Devices, Inc.
DEMO BOARD FOR LT4356-2

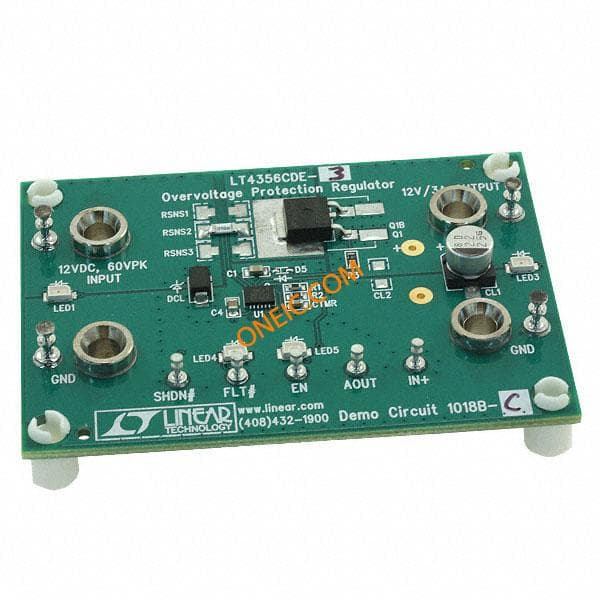

DC1018B-C
Analog Devices, Inc.
DEMO BOARD FOR LT4356-3

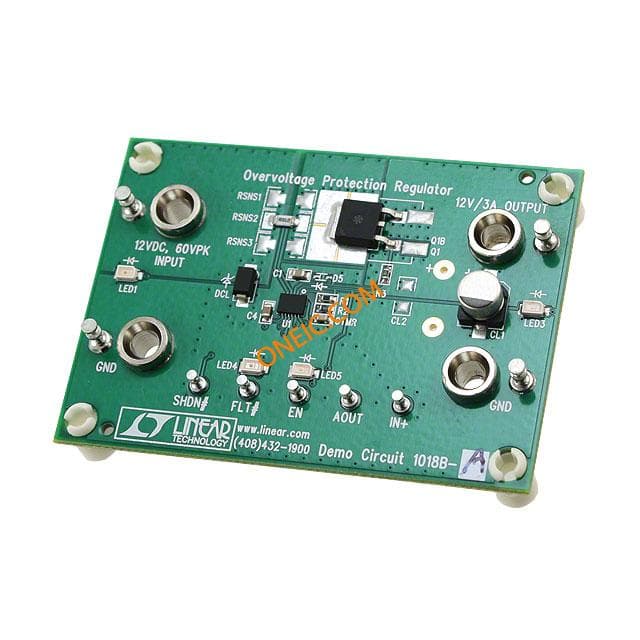

DC1018B-A
