LT3574IMS#TRPBF
| Manufacturer | |
| Description | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 3V to 40V 16-Pin MSOP T/R IC REG FLYBK ISO ADJ .65A 16MSOP |
| Category |
Business
| Standard Package | 2,500 | Standard Package Name | MSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| PWM Type | Current Mode, Hybrid | Isolation | Isolated |
| Output Type | Fixed | Voltage Rating | 5 |
| Line Regulation | 0.03%/V | Current - Output | 650mA |
| Number of Outputs | 1 | Switching Regulator | Yes |
| Frequency - Switching | 40kHz ~ 1MHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | Adj to 60V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Package / Case | 16-TFSOP (0.118", 3.00mm Width) |
| Package Quantity | MSOP | Number of Positions | 16 |
| Supplier Device Package | 16-MSOP | ||
Product Info
| Type | Non-Inverting|Inverting|Step Up|S... | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
750310563
Midcom / Wurth Electronics
変圧器 オーディオとシグナル Flyback Transformer 25uH 0.275ohm TRANS FLYBACK LT3573 25UH SMD Transformers Audio & Signal Flyback Transformer 25uH 0.275ohm
750311308
Wurth Electronics Inc
TRANS FLYBACK LT3575LT3574 100UH 1:1 Surface Mount, 100μH TRANS. FLYBACK LT3575 LT3574, 100UH 1:1 表面贴装 电信变压器, 100μH, 0.325Ω
750311567
Wurth Electronics Inc
TRANS FLYBACK LT3575LT3748 7.0UH 2:1 Surface Mount, 7μH Transformers Audio & Signal WE-FB Flyback XFMR 7.0uH +-10% TRANS. FLYBACK LT3575 LT3748 7UH 10% 2:1 表面贴装 回扫变压器, 7μH, 0.07Ω
750311439
Wurth Electronics Inc
TRANS FLYBACK LT3748LT3575 37UH 2:1 Surface Mount, 37μH TRANS FLYBACK LT3748 LT3575 37UH 10% 2:1 表面贴装 回扫变压器, 37μH, 0.089Ω
750311303
Wurth Electronics Inc
TRANS FLYBACK LT3575 50UH SMD 5:1 Surface Mount, 50μH Transformers Audio & Signal WE-FB Flyback XFMR 50uH +-10% TRANSFORMER, FLYBACK LT3575 50UH 10%
750311564
Wurth Electronics Inc
TRANS FLYBACK LT3748 LT3575 SMD 3:1 Surface Mount, 9.07μH TRANS FLYBACK LT3748 LT3575 9.07UH 3:1 表面贴装 回扫变压器, 9.07μH, 0.036Ω
750311457
Wurth Electronics Inc
TRANS FLYBACK LT3748LT3575 50UH 4:1 Surface Mount, 50μH TRANS FLYBACK LT3748 LT3575 50UH 10% 4:1 表面贴装 回扫变压器, 50μH, 0.115Ω

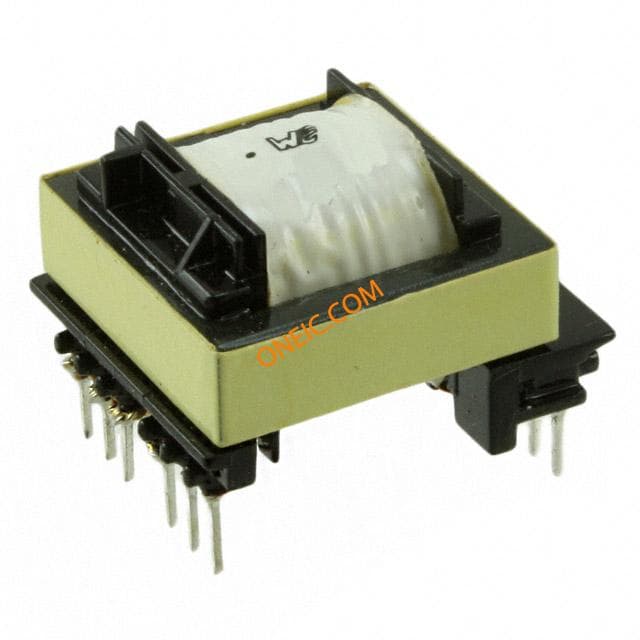

750311911
Wurth Electronics Inc
TRANS FLYBACK LT3748 6.8UH RAD 1:3 Surface Mount, 6.78μH TRANS. FLYBACK LT3748 6.78MH 10% 1:3 表面贴装 回扫变压器, 6.78μH, 0.02Ω
750311424
Wurth Electronics Inc
TRANS FLYBACK LT3748 100UH SMD 3:1 Surface Mount, 100μH TRANSFORMER FLYBACK LT3748 100UH 10% 3:1 表面贴装 电信变压器, 100μH, 0.185Ω
750311456
Wurth Electronics Inc
TRANS FLYBACK LT3748 100UH SMD 3:1 Surface Mount, 100μH Transformers Audio & Signal WE-FB Flyback XFMR 100uH +-20% TRANSFORMER FLYBACK LT3748 100UH 10%
750311625
Wurth Electronics Inc
TRANS FLYBACK LT3748 LT3575 9UH 4:1 Surface Mount, 9μH Transformers Audio & Signal WE-FB Flyback XFMR 9.0uH +-10% TRANS FLYBACK LT3748 LT3575 9UH 10%
750311422
Wurth Electronics Inc
TRANS FLYBACK LT3748LT3575 50UH 5:1 Surface Mount, 50μH Transformers Audio & Signal WE-FB Flyback XFMR 50uH +-20% TRANS FLYBACK LT3748 LT3575 10UH 10%
750311423
Wurth Electronics Inc
TRANS FLYBACK LT3748LT3575 50UH 4:1 Surface Mount, 50μH
750311608
Wurth Electronics Inc
TRANS FLYBACK LT3748 12UH SMD 1.5:1 Surface Mount, 12μH Transformers Audio & Signal WE-FB Flyback XFMR 12.0uH +-10% TRANSFORMER FLYBACK LT3748 12UH 10% 1.5:1 表面贴装 回扫变压器, 12μH, 0.03Ω
750311605
Wurth Electronics Inc
TRANS FLYBACK LT3748 15UH SMD 1:3.5 Surface Mount, 15μH TRANSFORMER FLYBACK LT3748 15UH 10% 1:3.5 表面贴装 回扫变压器, 15μH, 0.04Ω

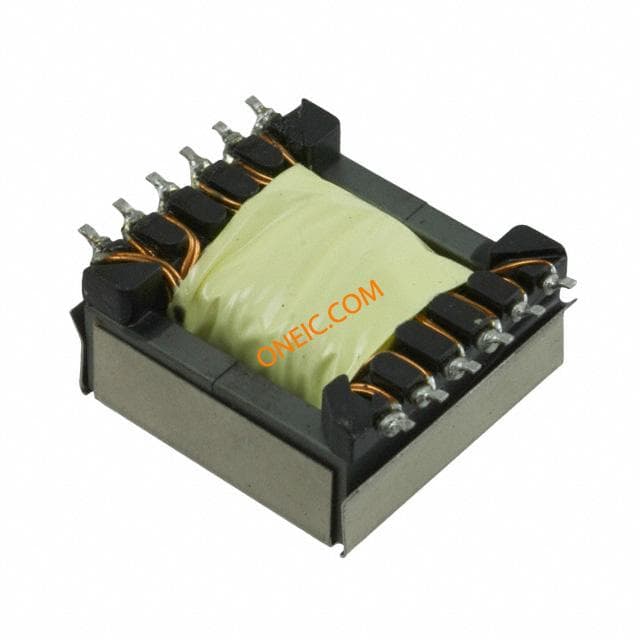

750311589
