LT3478IFE#PBF
| Manufacturer | |
| Description | LED DRVR 3.3V/5V/9V/12V/15V/18V/24V 16-Pin TSSOP EP IC LED DRVR HP CONS CURR 16TSSOP LED DRIVER, 42V, 2.25MHZ, 16TSSOP LED 驱动器, 2.8 → 36 V, 16引脚 TSSOP封装 |
| Category |
Business
| Other Names | LT3478IFEPBF | Standard Package | 95 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Dimming | :PWM | Frequency | 200kHz ~ 2.25MHz |
| Display Type | :LED | Voltage Rating | :41V |
| Current - Output | :4.5A | Voltage - Supply | 2.8 V ~ 36 V |
| Number of Outputs | 1 | Frequency - Switching | :2.25MHz |
| Voltage - Input (Min) | 42V | Voltage - Supply (Min) | 2.8 V |
| Current - Output High, Low | 40 mA | Constant Current Load - Max | Yes |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Continuous Operating (Max) (MCOV) | :36V |
Mechanical
| Weight | 0.0002 | Packaging | Tube |
| Case Color | :TSSOP | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :16 | Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed pad |
| Package Cooled | TSSOP EP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | TSSOP EP | Number of Positions | 16 |
| Supplier Device Package | 16-TSSOP-EP | ||
Product Info
| Type | Color, White LED | Topology | PWM, Step-Down (Buck), Step-Up (Boost) |
| Base Unit | :3478 | Internal Connection | Yes |
| Application Specifics | :Automotive Lighting, High Power LED Driver | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
744720
Wurth Electronics Inc

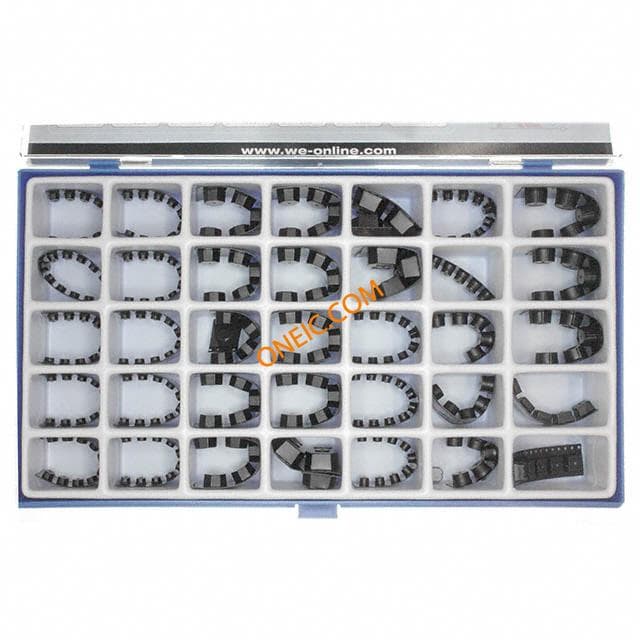

KIT DESIGN FOR LINEAR TECH Wurth Elektronik Power Inductor Inductor Design Kit, 239 Pieces DESIGN-KIT SMD-POWER CHOKES Wurth Elektronik 239件 电感器设计套件, 套件包含功率电感器
