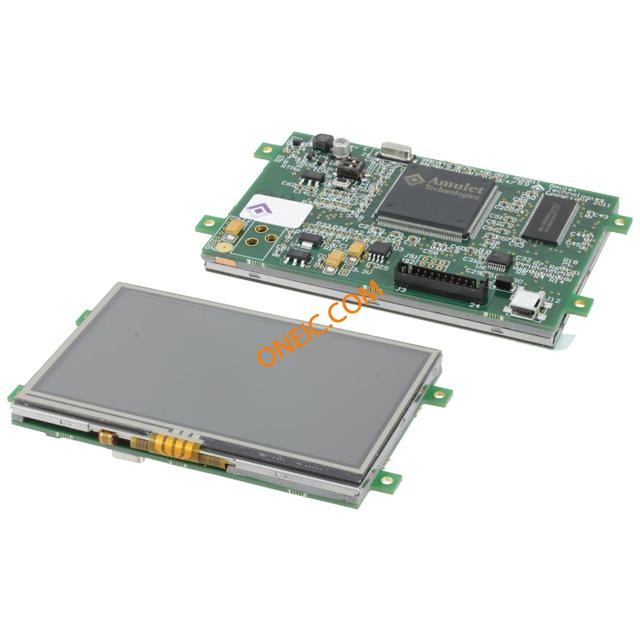

MK-480272C
| Manufacturer | |
| Description | TFT Displays & Accessories 4.3 480x270 DPI Color Module Kit Graphic Module 4.3in Normally White-Transmissive 480x272Pixels 24-Pin KIT COLOR MODULE 480X272 TFT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Displays | Product Category | TFT Displays & Accessories |
| Standard Package | 60 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Backlight | LED White | Interface | RS-232, SPI, UART, USB |
| Resolution | 480 x 272 | Display Type | TFT |
| Voltage - Supply | 5 V | Current - Average Rectified (Io) | 300 mA |
Mechanical
| Size | 105.5 mm x 67.2 mm x 4 mm | Width | 67.2 |
| Dot Pitch | 0.20mm x 0.20mm | Mounting Type | Screw |
| Length - Overall | 118.6 | Outline L x W x H | 105.5x67.2x4 |
| Number of Positions | 24 | Shell Size - Insert | 8.2 |
Product Info
| Dot Pixels | 480 x 272 | Active Area | 95.04x53.856 |
| Touchscreen | Yes | Display Mode | Normally White-Transmissive |
| Pixel Format | 480x272 | Viewing Area | 95.04 mm x 53.856 mm |
| Size - Display | 4.3 | Diagonal Screen Size | 4.3 in |
| Other Specifications | Touch Panel | Printed Circuit Board | 24 |
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Operating Temperature | - 20 C to + 70 C |
| Luminous Flux @ Current/Temperature | 350 | ||
