T 3638 009
| Manufacturer | |
| Description | Conn Circular F 12 POS Solder ST Panel Mount 12 Terminal 1 Port CONN FMALE RCPT 12PS FRNT PNL MT Circular DIN Connectors 12 Pin female; Front Pnl Mnt connector, circular din, female panel recept, front mt, 12 silver-pltd solder cont |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 009 3638 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 150V | Voltage - Supply | DIN |
| Current Rating (Max) | 3A | ||
Mechanical
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 24 AWG | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | Socket | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Package / Case | Metal | Connector Usage | Threaded |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Dielectric Material | Thermoplastic |
| Number of Positions | 12 | Shell Size - Insert | DIN |
| Shell Material, Finish | Die Cast, Nickel Plated | ||
Product Info
| Type | Circular | Gender | RCP |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | RF Family/Standard | C091A |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Online Document
Similar Parts

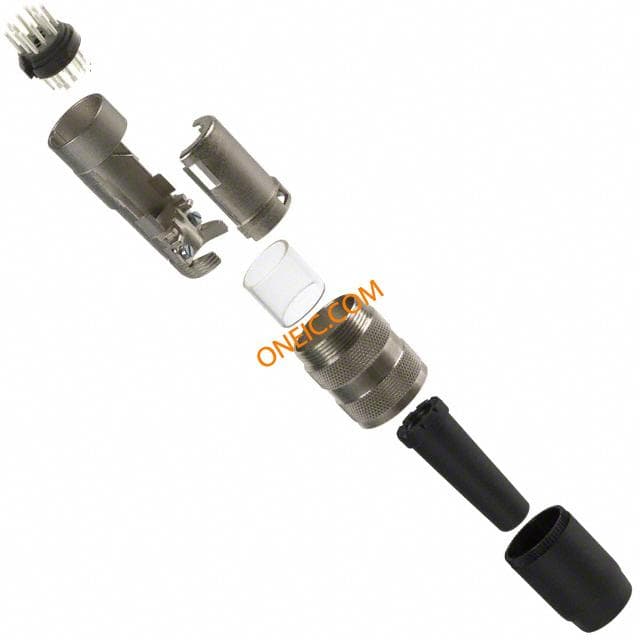

T 3635 001
