T 3424 501
| Manufacturer | |
| Description | Conn Circular M 6 POS Solder ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS CABLE PIN Circular DIN Connectors 6P DIN CABLE PLUG SODR SILV BAYONET PLUG, FREE, 6WAY connector, circular din, str male cable conn, 6din silver-pltd solder contact, ip40 Cable connector, C091B 6-pin Poles=6, T 3424 501, Amphenol |
| Category |
Business
| Other Names | T3424501 | Part # Aliases | 3424 501 T U |
| Product Category | Circular DIN Connectors | Standard Package | Boxed |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage - Test | :980V | Voltage Rating | 300V |
| Voltage - Supply | DIN | Voltage - Working | :250V |
| Contact Resistance | :5mohm | Dielectric Strength | :980V |
| Current Rating (Max) | 5A | Insulation Resistance | :1012Mohm |
Mechanical
| Color | Red | Weight | 0.01763 |
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | :0.5mm² | Orientation | Keyed |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 4-6 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | Wire | Package / Case | Metal |
| Connector Usage | Bayonet | Insertion Angle | :- |
| Material - Body | :Metal | Contact Material | :- |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 6 |
| Shell Size - Insert | DIN (240 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Circular | Gender | :Plug |
| Series | :C091B | Features | Shielded, Strain Relief |
| Manufacturer | C091-B Series | Product Type | Connectors |
| RF Family/Standard | C091B | ||
Environmental
| Seal Rating | IP 40 | Mating Cycles | :500 |
| NEMA Frame Size | :IP40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3428 501
Amphenol Tuchel
Circular DIN Connectors 6P DIN CABLE RECPT SODR SILV BAYONET CONN RCPT 6POS CABLE SKT SOCKET, FREE, 6WAY connector, circular din, fem cable conn, solder term, 6din silver plt socket, ip40
T 3427 100
Amphenol Tuchel
Circular DIN Connectors 6P DIN PAN FEM RECPT SODR SILV BAYONET CONN RCPT 6POS PANEL MNT SKT
T 3427 600
Amphenol

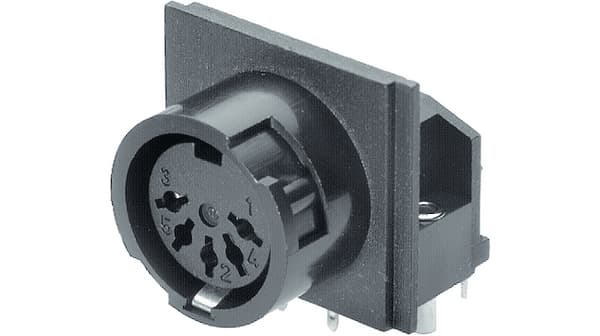

Conn Circular F 6 POS Solder RA Thru-Hole 6 Terminal 1 Port FEMALE RECEPTACLE 6WAY Appliance socket C091B 6-pin Poles=6, T 3427 600, Amphenol 06P CIRCULAR CONN FEMALE
