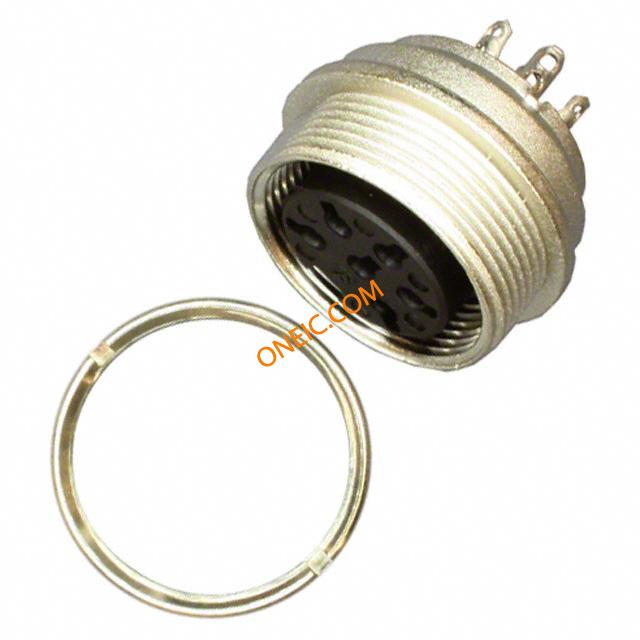

T 3403 100
| Manufacturer | |
| Description | Conn Circular F 6 POS Solder ST Panel Mount 6 Terminal 1 Port CONN FMALE RCPT 6POS REAR PNL MT Circular DIN Connectors 6 Pin female; Rear Pnl Mnt SOCKET, REAR PANEL MNT, C091A, 6WAY CONNECTOR, CIRCULAR, RCPT, 6POS, PANEL connector, circular din, female panel recept, rear mt, 6din silver-pltd solder cont |
| Category |
Business
| Part # Aliases | 100 3403 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85366990 |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.014 | Diameter | 20 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder | Contact Type | 6Signal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Housing Material | Die Cast | Length - Overall | 17.5 |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | F | Number of Contacts | 6 |
| Contact Termination | :Solder | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | DIN (240 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Circular | Gender | RCP |
| Series | :C091A | Features | Shielded |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
