T 3403 009
| Manufacturer | |
| Description | Conn Circular F 6 POS Solder ST Panel Mount 6 Terminal 1 Port CONN FMALE RCPT 6PS FRONT PNL MT Circular DIN Connectors 6 Pin female; Front Pnl Mnt connector, circular din, female panel recept, front mt, 6din silver-pltd solder cont |
| Category |
Business
| Part # Aliases | 009 3403 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Diameter | 20 mm | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Form | 6Signal | Contact Type | 6Signal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Panel |
| Package / Case | Metal | Connector Usage | Threaded |
| Housing Material | Die Cast | Length - Overall | 17.5 mm |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | F | Number of Contacts | 6 |
| Dielectric Material | Thermoplastic | Number of Positions | 6 |
| Shell Size - Insert | DIN (240 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Circular | Gender | RCP |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | RF Family/Standard | C091A |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts

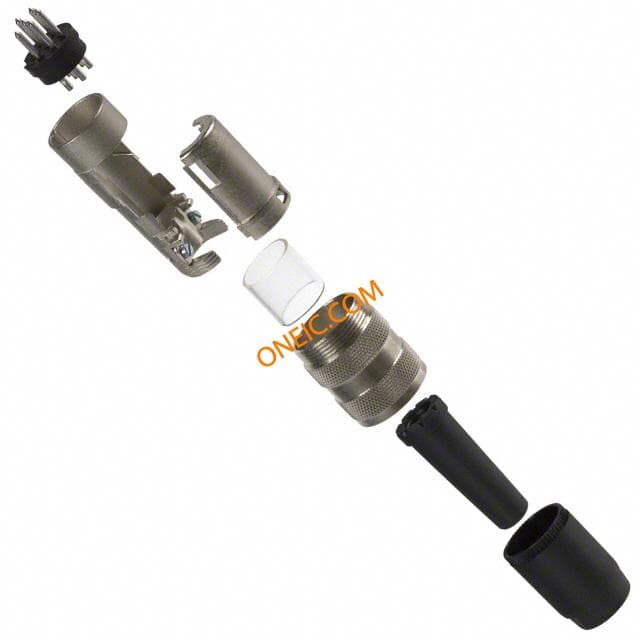

T 3400 001
amphenol
Conn Circular M 6 POS Solder ST Cable Mount 6 Terminal 1 Port CONN CIR MALE 6POS CBL MNT Circular DIN Connectors 6P DIN CABLE PLUG PLUG, FREE, C091A, 6WAY connector, circular din, str male cable conn, 6din silver plt solder contact, ip40 Cable connector, C091A 6-pin Poles=6, T 3400 001, Amphenol
C091 00V000 130 2
Amphenol Tuchel
Circular DIN Connectors COVER FOR FEMALE CON PROTECTIVE CAP PROTECTIVE COVER, FOR FEMALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C

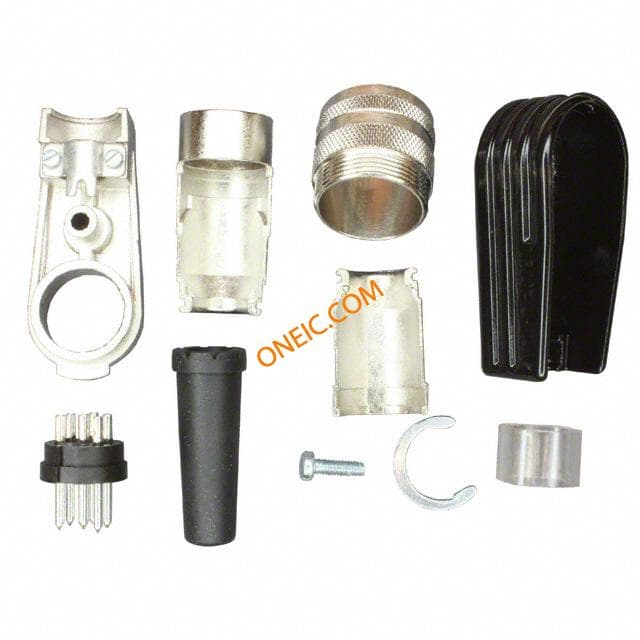

T 3400 005
