T 3303 009
| Manufacturer | |
| Description | Conn Circular F 4 POS Solder ST Panel Mount 4 Terminal 1 Port CONN FMALE RCPT 4PS FRONT PNL MT Circular DIN Connectors 4 Pin female; Front Pnl Mnt connector, circular din, female panel recept, front mt, 4iec silver-pltd solder cont |
| Category |
Business
| Part # Aliases | 009 3303 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Diameter | 20 | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 4Signal | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Package / Case | Metal | Connector Usage | Threaded |
| Housing Material | Die Cast | Length - Overall | 17.5 |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | F | Number of Contacts | 4 |
| Dielectric Material | Thermoplastic | Number of Positions | 4 |
| Shell Size - Insert | DIN (210 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Circular | Gender | RCP |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | RF Family/Standard | C091A |
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts

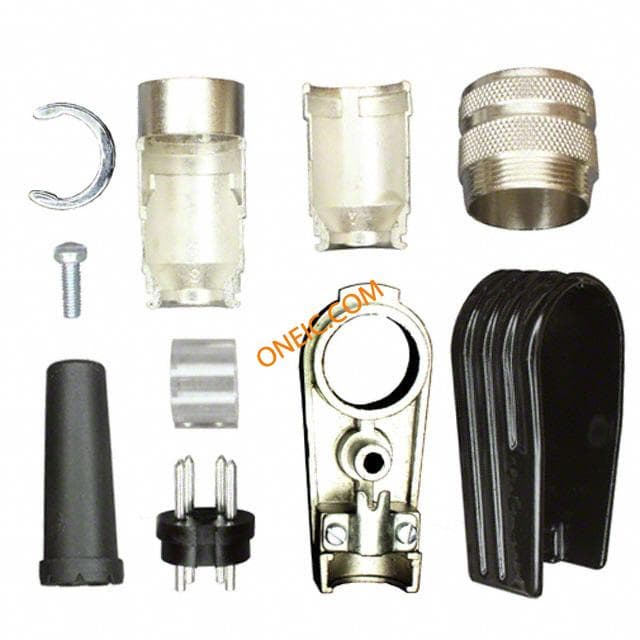

T 3300 005
