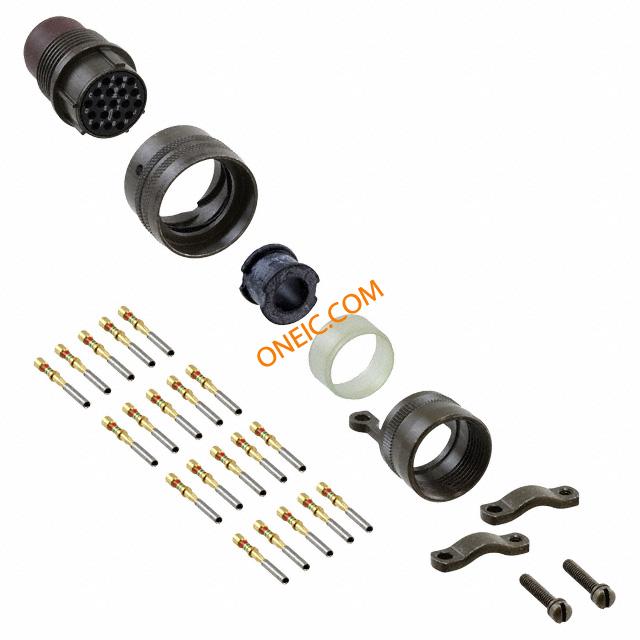

PT06SE-14-19S

Manufacturer	Amphenol Corporation
Description	Conn Miniature Cylindrical SKT 19 POS Crimp ST Cable Mount 19 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN PLUG 19 POS STRAIGHT W/SCKT
Category	Connector SolutionsCircular ConnectorsMilitary Circular Connectors

对参数有疑问？问 AI 助手

Business

Other Names

PT06SE1419S

Standard Package

Bulk

Compliance

RoHS

Lead free / RoHS non-compliant

Electrical

Voltage Rating

600VAC

Current Rating (Max)

7.5A

Mechanical

Packaging	Bulk	Shell Size	14
Orientation	N (Normal)	Shell Style	straight plug
Termination	Crimp	Contact Type	socket contacts
Mounting Type	Cable Mount	Connector Type	Miniature Cylindrical Connector - bayonet lock connector with crimp contacts
Contact Finish	Gold	Fastening Type	Bayonet Lock
Insertion Angle	14-19	Number of Contacts	Yes
Number of Positions	19	Shell Size - Insert	14-19
Shell Material, Finish	Aluminum, Olive Drab Cadmium Plated

Product Info

Type	Miniature Cylindrical	Gender	PL
Service Class	environmental crimp

Environmental

Ingress Protection

Environment Resistant

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

12-070.pdf

PDF Document

MIL-C-26482, Series 1
