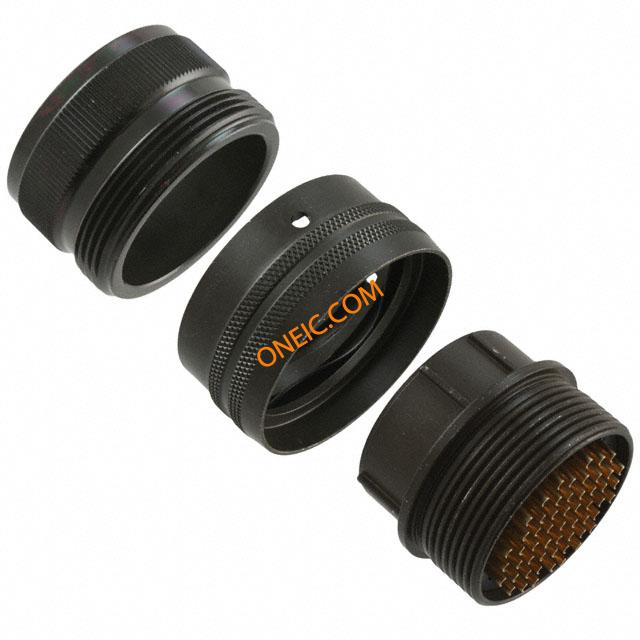

PT06A-22-55S
| Manufacturer | |
| Description | Conn Miniature Cylindrical SKT 55 POS Solder ST Cable Mount 55 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 55 POS STRAIGHT W/SCKT Circular MIL Spec Connector 55P Size 22 Straight Socket Plug CONNECTOR, STRAIGHT PLUG, CLASS A, SIZE 22, 55 #20 SOLDER SOCKET CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06A2255S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 22 |
| Wire Gauge | 20 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder |
| Contact Size | 20 AWG | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | 55 | Dielectric Material | Neoprene |
| Number of Positions | 55 | Shell Size - Insert | 22-55 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 55#20 |
Product Info
| Type | Miniature Cylindrical | Class | A |
| Gender | PL | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Plugs | Service Class | general duty back shell |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
