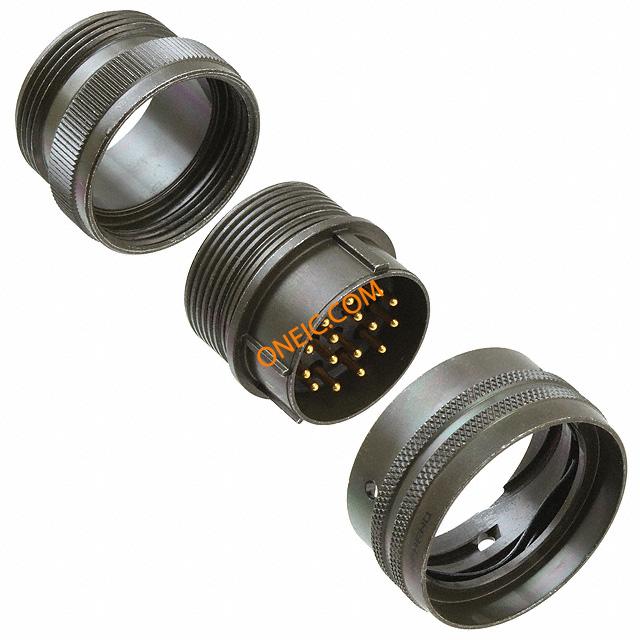

PT06A-20-16P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 16 POS Solder ST Cable Mount 16 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 16 POS STRAIGHT W/PINS Circular MIL Spec Connector 16P Size 20 Straight Pin Plug CONNECTOR, STRAIGHT PLUG, CLASS A, SIZE 20, 16 #16 SOLDER PIN CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06A2016P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 20 |
| Wire Gauge | 16 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder |
| Contact Size | 20 | Contact Type | pin contacts |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 16 | Dielectric Material | Neoprene |
| Number of Positions | 16 | Shell Size - Insert | 20-16 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 16#16 |
Product Info
| Type | MIL-C-26482 Circular | Class | A |
| Gender | PL | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Plugs | Service Class | general duty back shell |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
