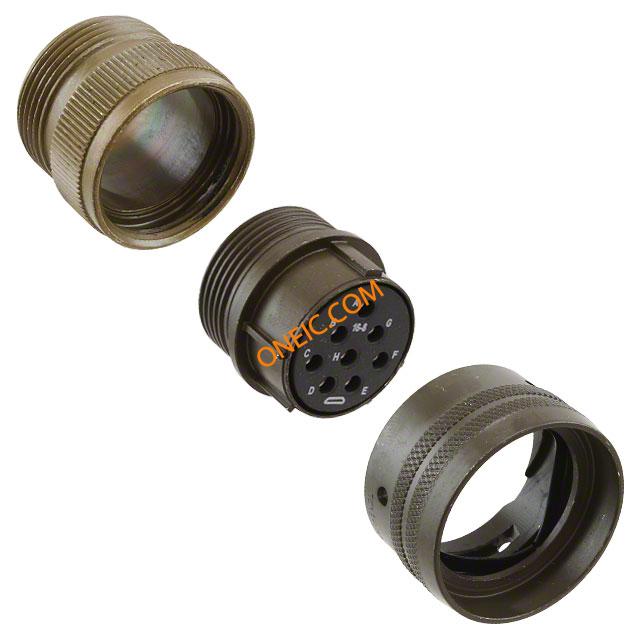

PT06A-16-8S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 8P Size 16 Straight Socket Plug CONN PLUG 8 POS STRAIGHT W/SCKT CONNECTOR, STRAIGHT PLUG, CLASS A, SIZE 16, 8 #16 SOLDER SOCKET CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06A168S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 16 |
| Wire Gauge | 16-20 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Solder |
| Contact Size | 16 | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Shell Plating | Chromate over Cadmium, Olive Drab |
| Angle of Throw | Straight | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Bayonet | Insertion Angle | normal (no rotation) position |
| Housing Material | Aluminum | Primary Material | 26482 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Bayonet | Number of Contacts | 8 |
| Dielectric Material | Neoprene | Number of Positions | 8 |
| Shell Size - Insert | 16-8 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 8#16 | ||
Product Info
| Type | MIL-C-26482 Circular | Class | A |
| Gender | PL | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Plugs | Service Class | general duty back shell |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
