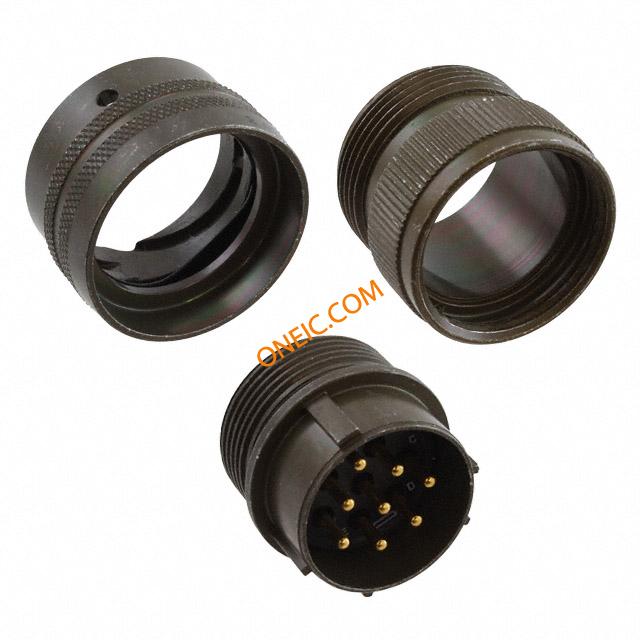

PT06A-16-8P
| Manufacturer | |
| Description | Conn Miniature Cylindrical PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONNECTOR CONN PLUG 8 POS STRAIGHT W/PINS connector;metal circ;class a;straight plug;size 16;8 #16 solder pin contact connector, metal circ, class a, straight plug, size 16, 8 #16 solder pin contact |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06A168P | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS non-compliant | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 16 |
| Orientation | N (Normal) | Shell Style | straight plug |
| Termination | Solder | Contact Type | pin contacts |
| Mounting Type | Cable Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Insertion Angle | normal (no rotation) position | Number of Positions | 8 |
| Shell Size - Insert | 16-8 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
Product Info
| Type | Miniature Cylindrical | Gender | PL |
| Service Class | general duty back shell | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
