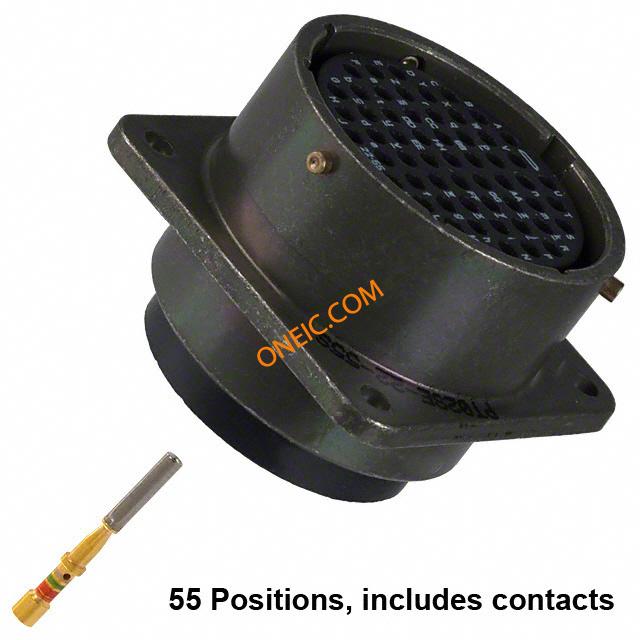

PT02SE-22-55S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 55 POS Crimp ST Box Mount 55 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 55POS W/SOCKET CRIMP |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 22 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Crimp | Contact Type | socket contacts |
| Mounting Type | Box Mount | Connector Type | MIL-C-26482, Series I, Miniature Cylindrical Connector, Crimp Type |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Insertion Angle | 22-55 | Number of Contacts | Yes |
| Number of Positions | 55 | Shell Size - Insert | 22-55 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | ||
Product Info
| Type | MIL-C-26482 Circular | Gender | RCP |
| Service Class | environmental crimp | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
