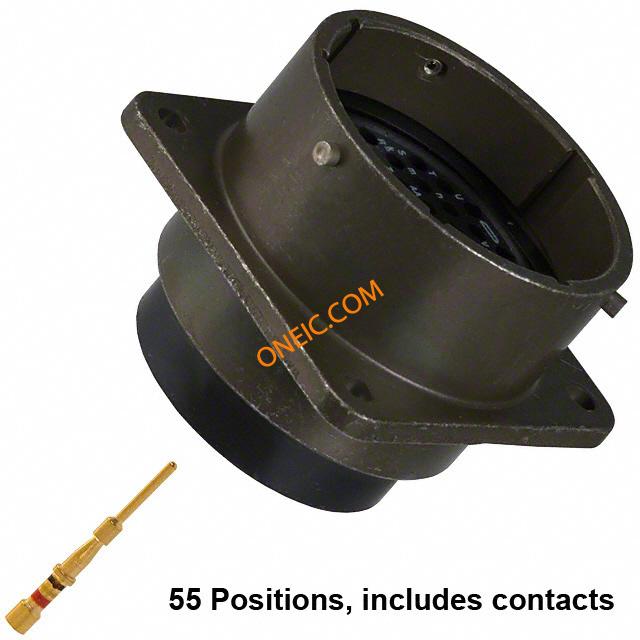

PT02SE-22-55P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 55 POS Crimp ST Box Mount 55 Terminal 1 Port Circular MIL Spec Connector 55P Sz 22 Box Mount Pin Receptacle MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 55POS W/PINS CRIMP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | No | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 7.5 A |
Mechanical
| Packaging | Bulk | Shell Size | 22 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | Box Mount | Termination | Crimp |
| Mounting Type | Box Mount | Shell Plating | Chromate over Cadmium, Olive Drab |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Shell Material | Aluminum Alloy | Insertion Angle | 22-55 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Bayonet | Number of Contacts | 55 |
| Number of Positions | 55 | Shell Size - Insert | 22-55 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | ||
Product Info
| Type | MIL-C-26482 Circular | Gender | RCP |
| Series | PT | Product Type | Receptacles |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

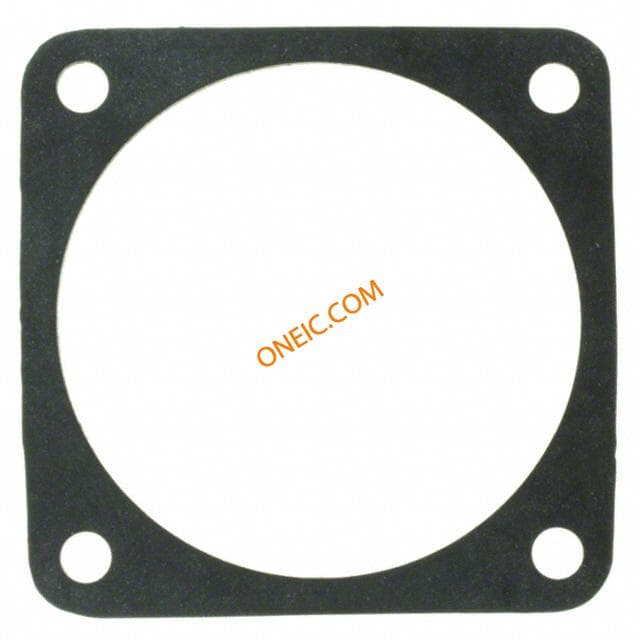

10-101949-022
