PT02SE-20-16S
| Manufacturer | |
| Description | Conn Miniature Cylindrical SKT 16 POS Crimp ST Box Mount 16 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN RECEPT 16POS W/SOCKET CRIMP Circular MIL Spec Connector 16P Sz 20 Box Mount Socket Receptacle |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 20 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Crimp | Contact Type | socket contacts |
| Mounting Type | Box Mount | Connector Type | MIL-C-26482, Series I, Miniature Cylindrical Connector, Crimp Type |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Aluminum Alloy |
| Insertion Angle | 20-16 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Bayonet |
| Number of Contacts | Yes | Number of Positions | 16 |
| Shell Size - Insert | 20-16 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
Product Info
| Type | Miniature Cylindrical | Gender | RCP |
| Series | PT | Product Type | Receptacles |
| Service Class | environmental crimp | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

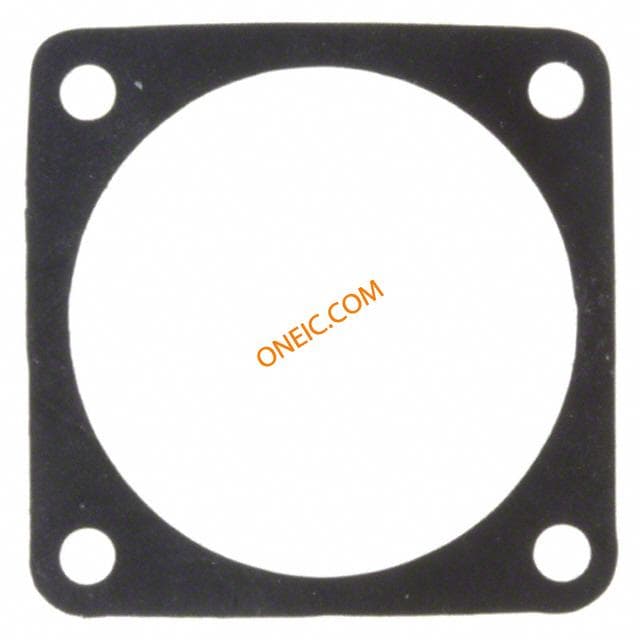

10-101949-020
amphenol
Connector Accessories Flange Gasket 20 Shell Size SEALING GASKET FOR #20 WALL RCPT connector accessory, mounting flange gasket, pt and pc receptacles, size 20
$1.0193
Details

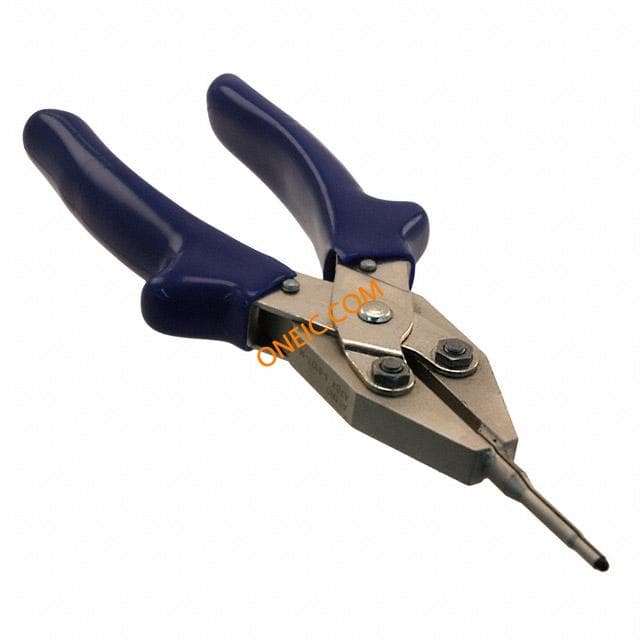

ATBX 1-8107-16
Astro Tool Corp
TOOL INSERTION PLIER METAL PT
$2433.3419
Details

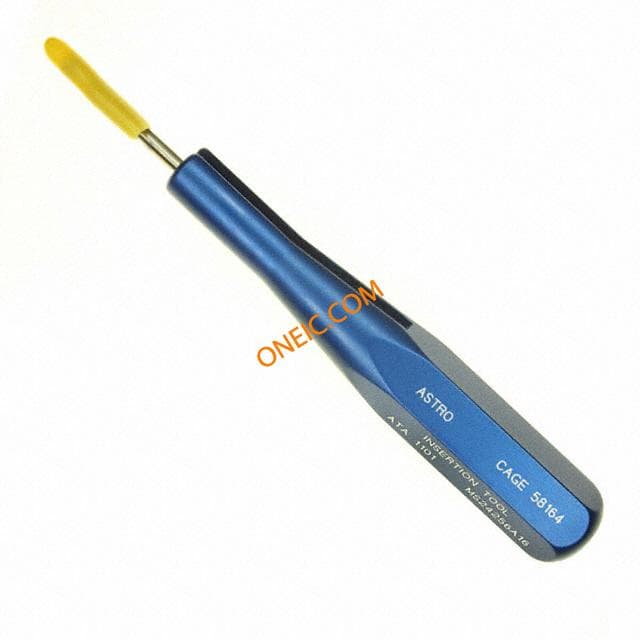

ATA 1101
Astro Tool Corp
TOOL INSERTION PLIER PLASTIC PT TOOL INSERTION 16 AWG
$354.9600
Details

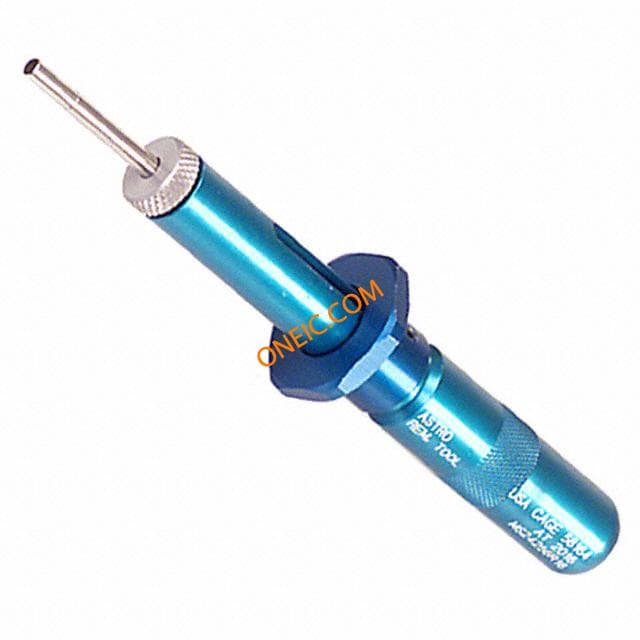

AT 2016
