PT02SE-16-8P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 8 POS Crimp ST Box Mount 8 Terminal 1 Port MIL-C-26482 Series 1 Connector, Crimp Contacts CONN CONN RECEPT 8POS W/PINS CRIMP |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 16 |
| Orientation | N (Normal) | Shell Style | box mount receptacle |
| Termination | Crimp | Contact Type | pin contacts |
| Mounting Type | Box Mount | Connector Type | MIL-C-26482, Series I, Miniature Cylindrical Connector, Crimp Type |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Insertion Angle | 16-8 | Number of Contacts | Yes |
| Number of Positions | 8 | Shell Size - Insert | 16-8 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | ||
Product Info
| Type | Miniature Cylindrical | Gender | RCP |
| Service Class | environmental crimp | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

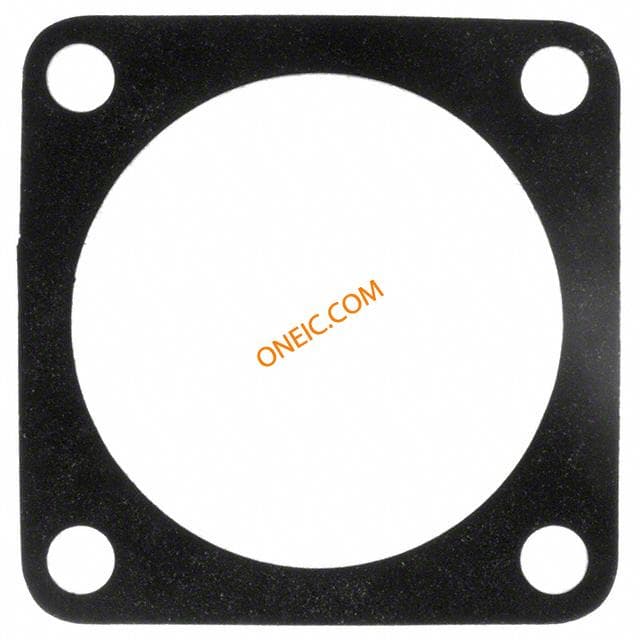

10-101949-016
amphenol
Connector Accessories Flange Gasket 16 Shell Size SEALING GASKET FOR #16 WALL RCPT Circular MIL Spec Tools, Hardware & Accessories GASKET connector accessory, flange gasket for wall & box receptacles, pt-series size 16
$4.9035
Details

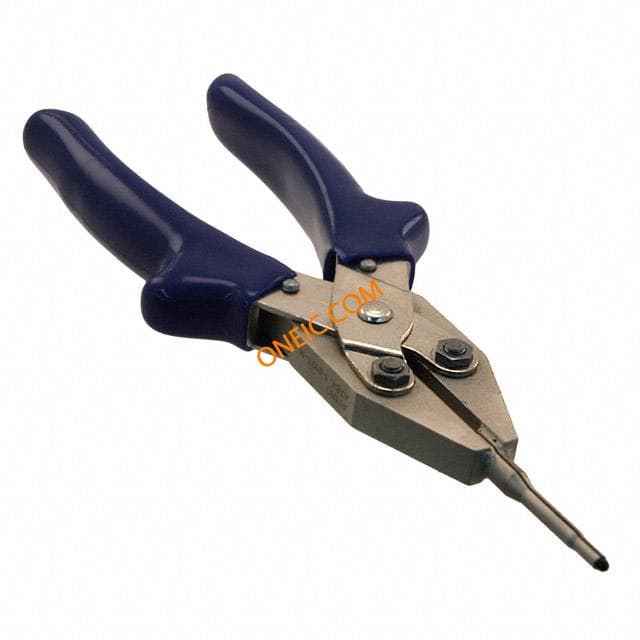

ATBX 1-8107-16
Astro Tool Corp
TOOL INSERTION PLIER METAL PT
$2433.3419
Details

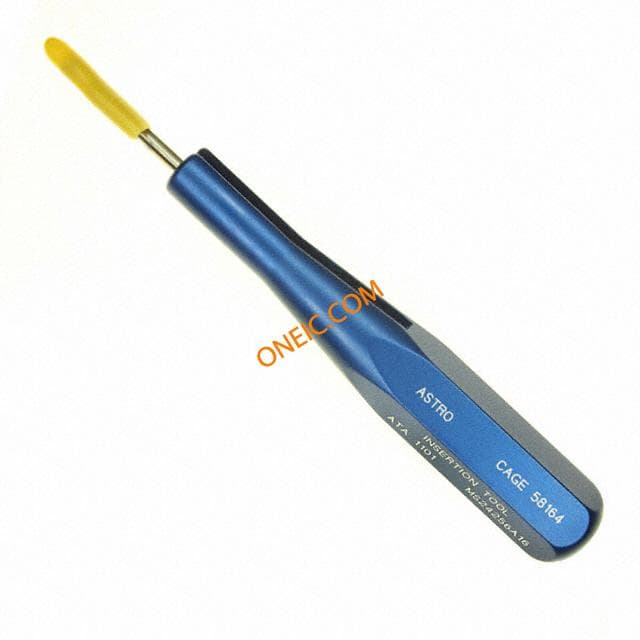

ATA 1101
