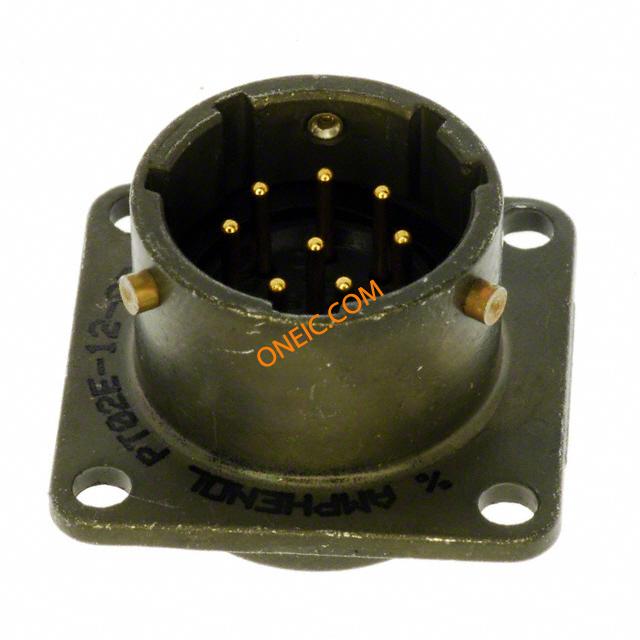

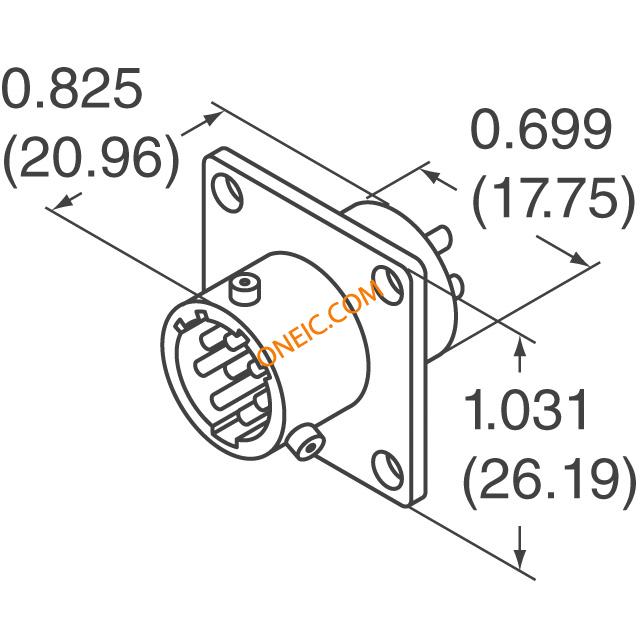

PT02E-12-8P
| Manufacturer | |
| Description | Conn Miniature Cylindrical PIN 8 POS Solder ST Box Mount 8 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 4P Size 12 Box Mount Pin Receptacle CONN RECEPT 8POS W/PINS SOLDER connector, metal circ, class e, box mount recept, size 12, 8 #20 solder pin contact |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20-24 | Orientation | N (Normal) |
| Shell Style | box mount receptacle | Termination | Solder |
| Contact Type | pin contacts | Mounting Type | Box Mount |
| Shell Plating | Chromate over Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 8 | Dielectric Material | Neoprene |
| Number of Positions | 8 | Shell Size - Insert | 12-8 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |

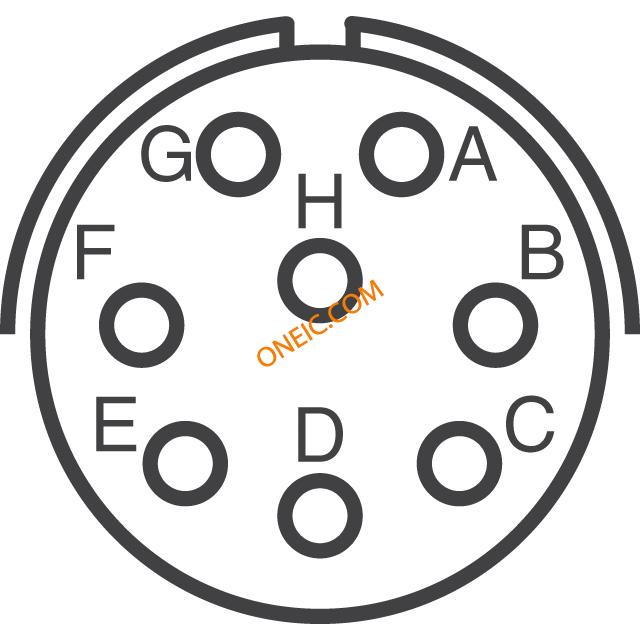

| Contact Layout, Typical | 8#20 | ||
Product Info
| Type | Miniature Cylindrical | Class | E |
| Gender | RCP | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Receptacles | Service Class | environmental resisting open wire seal with grommet and nut |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
